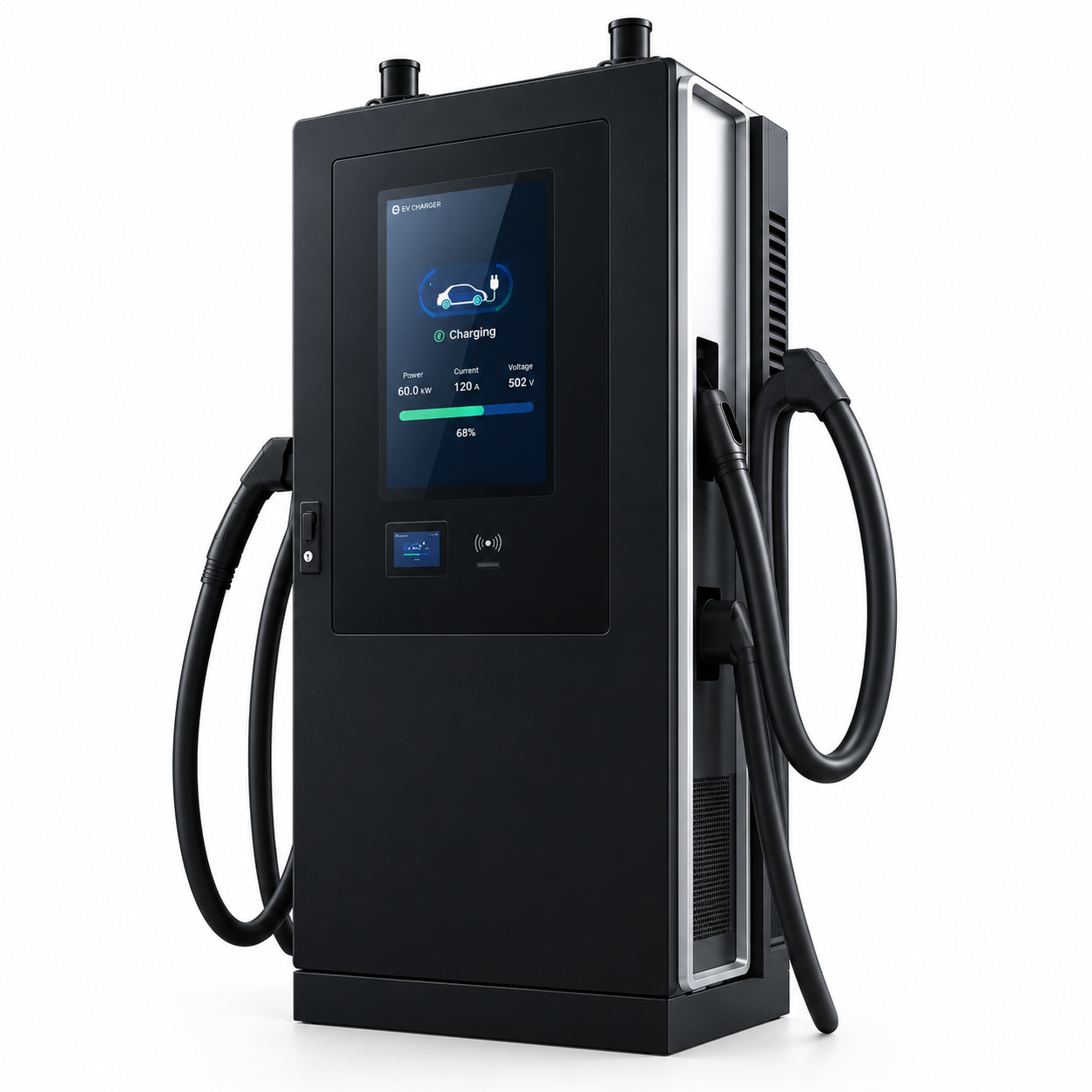

80–320kW High-Power DC Fast Charger with 32" Digital Advertising Screen
150–1000V DC | Dual-Gun | Up to 400A | Up to 320kW | OCPP 1.6 JSON | 32" Digital Advertising Screen
Designed for high-utilization charging hubs, highway corridors, and CPO networks, the Turbo Series delivers high-power DC charging with a built-in 32-inch digital display — creating an additional advertising and branding opportunity for site operators. With dual-gun output, wide voltage compatibility, and rugged floor-standing construction, it combines charging infrastructure with commercial value.
What is Turbo? — High-Power DC Charging with Built-in Advertising Value
The Turbo Series is a high-power DC fast charging platform designed for commercial operators who need maximum throughput and additional revenue channels. Available in 80/120kW, 160/180kW, and 240/320kW configurations, it delivers reliable charging for public networks, highway corridors, and fleet operations.
The integrated 32-inch digital display provides a dedicated space for brand messaging, promotions, partner advertising, and customer communication during charging sessions — turning dwell time into an advertising opportunity. With 150–1000V DC output, dual-gun capability, and up to 400A current options, it supports a broad range of EVs from passenger cars to electric buses and trucks.
Why PulseCharge Fits Your Region
⚡Up to 320kW High-Power Output
Supports high-power DC charging up to 320kW, helping reduce charging time and increase site throughput when supported by the vehicle and site electrical infrastructure.
🔌Dual-Gun Simultaneous Charging
Supports simultaneous charging from two connectors, with power distribution depending on the selected configuration and charging demand.
📊150–1000V Wide Voltage Range
Broad voltage compatibility across vehicle types — from passenger EVs with lower-voltage batteries to buses and trucks requiring higher voltage and current.
🖥️32″ Digital Advertising Display (Standard)
Built-in 1080p display with 1500 nits brightness creates an additional advertising and branding opportunity for site operators, partner promotions, and customer communication.
🌐OCPP 1.6 JSON Ready
Native OCPP support with Wi-Fi, Ethernet, and 4G enables integration with compatible charging management platforms and network operations.
One Charger. More Charging Throughput. More Brand Visibility.
| 320kW | 2 | 32″ |
|---|---|---|
 Maximum Rated Output |
|  Digital Advertising Display |
Charging ConnectoThe Turbo Series combines high-power DC charging infrastructure with a built-in digital advertising screen — enabling operators to maximize site throughput while creating an additional branding and advertising channel.
Find the Right Configuration for Your Site
Select the power rating that matches your project requirements, site traffic, and grid capacity.
⚠️ Grid Capacity Note:Before selecting the charger, confirm your available site power capacity and electrical infrastructure. Higher-power configurations require adequate grid connection and upstream protection.
| 80–120kW | 160–180kW | 240–320kW |
|---|---|---|
| 80–120kW Total Output | 160–180kW Total Output | 240–320kW Total Output |
| Recommended Application: Urban public charging, retail parking, destination charging, small fleets | Recommended Application: High-traffic urban hubs, medium fleets, commercial parking | Recommended Application: Highway corridors, bus depots, truck charging, CPO high-utilization sites |
| Typical Buyer: Installer / Distributor / CPO | Typical Buyer: CPO / EPC | Typical Buyer: CPO / Fleet / Infrastructure Developer |
Not sure which configuration fits your project? Contact our team for a recommendation based on your site power capacity, expected daily sessions, and vehicle types.
Integration & Connectivity — Designed for Network Operations
OCPP 1.6 JSON enables integration with compatible charging management platforms. Smart energy management and backend functions depend on the connected CMS and overall system architecture.
📶
Wi-Fi / Ethernet / 4G (All Standard)📡
OCPP 1.6 JSON (Native)📱
App / QR Code / RFID Card💳
POS payment is available as an optional software integration and may require local payment-service configuration- Remote monitoring
- Billing and payment processing
- Dynamic load management
- OTA firmware updates
- Data analytics and reporting
Installation Requirements — What Installers Need to Know
| Parameter | Specification |
|---|---|
| Power Supply | 400V AC ±10%, 3P+N+PE |
| Installation Type | Floor Stand |
| Cable Length | 5m (standard) |
| Operating Temperature | -30°C to +50°C |
| Ingress Protection | IP54 |
| Impact Protection | IK08 |
| Communication | Ethernet / 4G / Wi-Fi |
| Dimensions (W×D×H) | 800×800×2020mm |
| Weight | 270–420kg (varies by configuration) |
| Recommended Upstream Breaker | To be determined per EPC project requirements |
| AC Input Cable Specification | To be determined per EPC project requirements |
| Grounding Requirement | To be determined per EPC project requirements |
For Distributors, Wholesalers & Installers
Turbo is designed to be a practical, reliable product that distributors and installers can confidently specify, sell, deploy, and support.
| Buyer Concern | RUNB Support |
|---|---|
| 📦 Bulk Orders / Wholesale | Available. Contact our sales team for volume pricing. |
| 🏷️ OEM / Private Label | Custom logo, color, interface, and product branding available. |
| 🔌 Multiple Connector Standards | Connector options include CCS2, CCS1, GB/T, NACS, and mixed CCS2+GBT configurations, subject to model and market requirements. |
| ⚙️ Flexible Product Configuration | Connector, cable length, communication, and payment options configurable per project. |
| 📄 Technical Documentation | Datasheets, manuals, CAD drawings, test reports, and certificates available. |
| 🛠️ Installation Support | Installation manuals, wiring diagrams, and commissioning guidelines provided. |
| 🌐 OCPP Integration | Native OCPP 1.6 JSON support for CMS and network integration. |
| MOQ | Available upon request and may vary by configuration and customization requirements. |
| ✅ Warranty | 2-year standard warranty, subject to the applicable sales agreement. |
| 🚢 Global Shipping | Available. Contact our sales team for shipping and logistics details. |
Applications — Where HyperCharge Fits

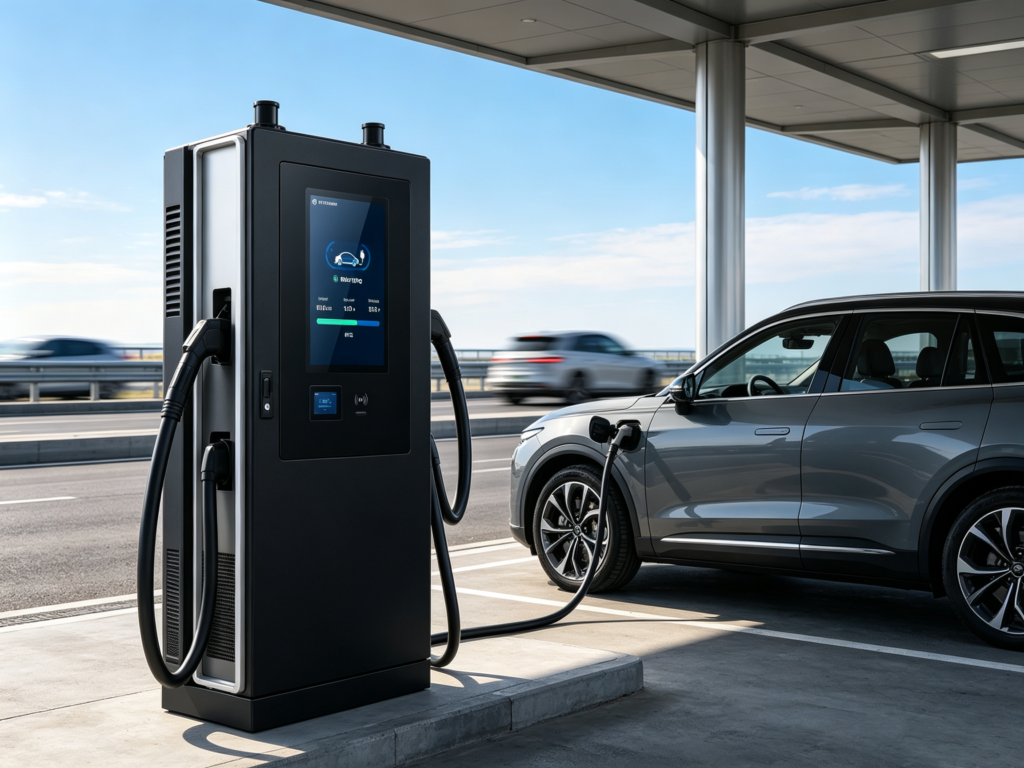

Highway Corridors
High power + advertising visibility
🛣️ Ultra-fast charging for travelers with minimal dwell time. 32-inch screen adds branding value at high-visibility locations.

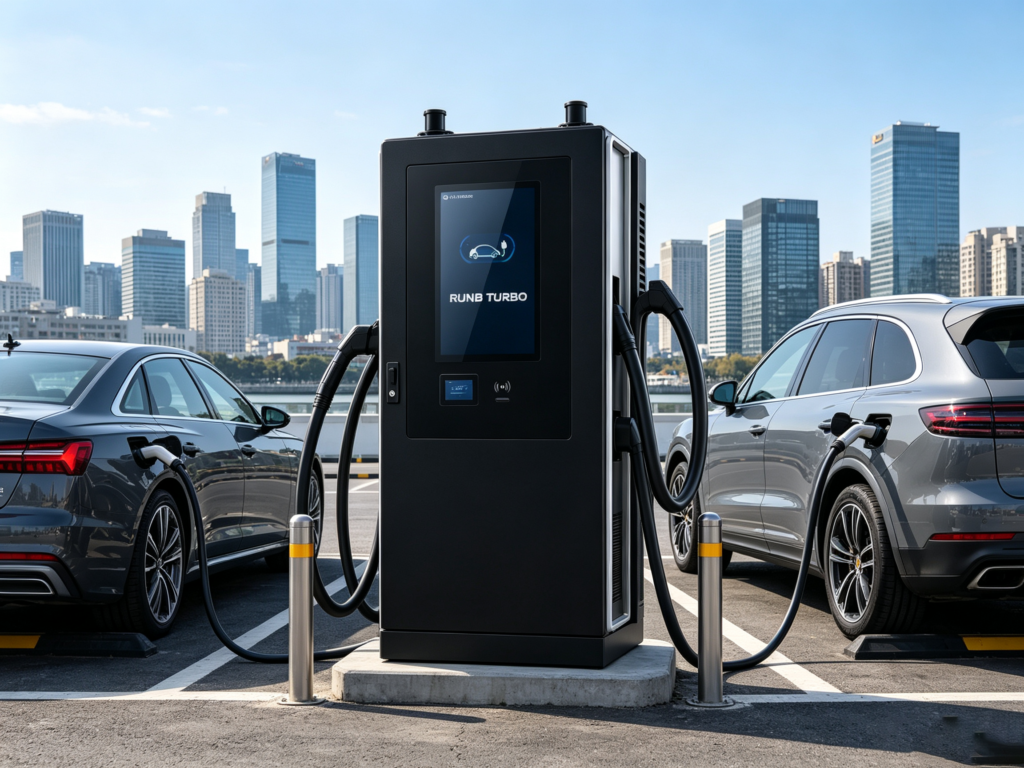

Urban Public Charging Hubs
High utilization + dual-gun operation
🏙️ Maximize site throughput in high-traffic urban locations with dual-gun operation and advertising opportunities.

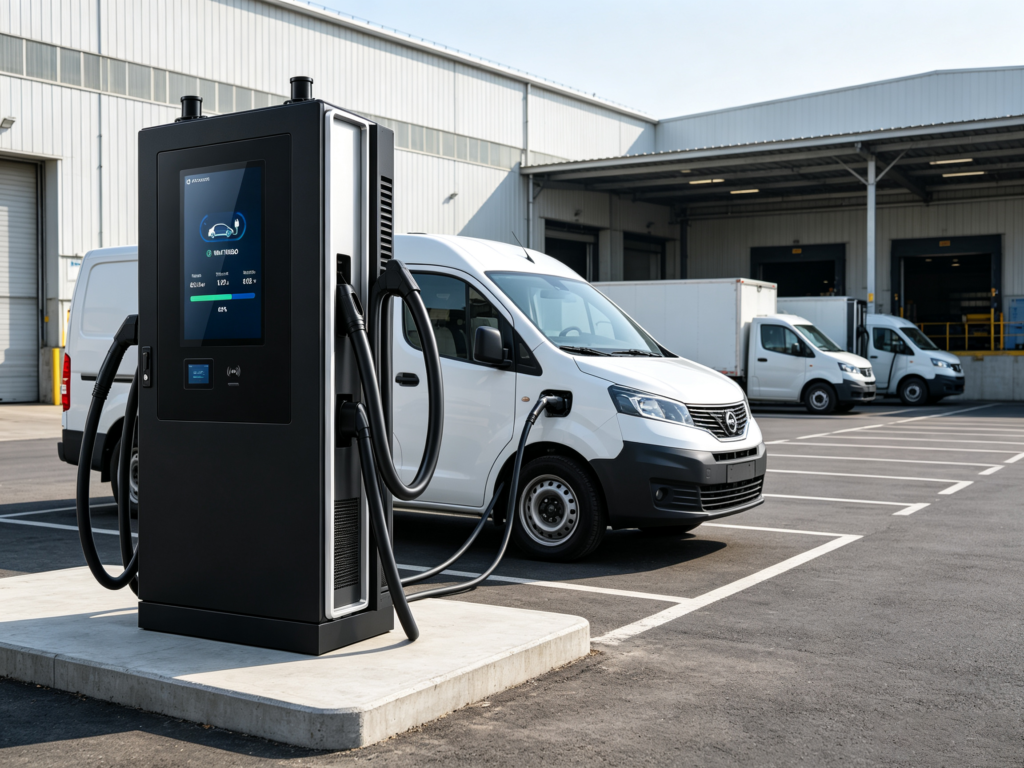

Fleet Depots
High power + flexible configurations
🚚 Serve multiple fleet vehicles efficiently with flexible power configuration up to 320kW.

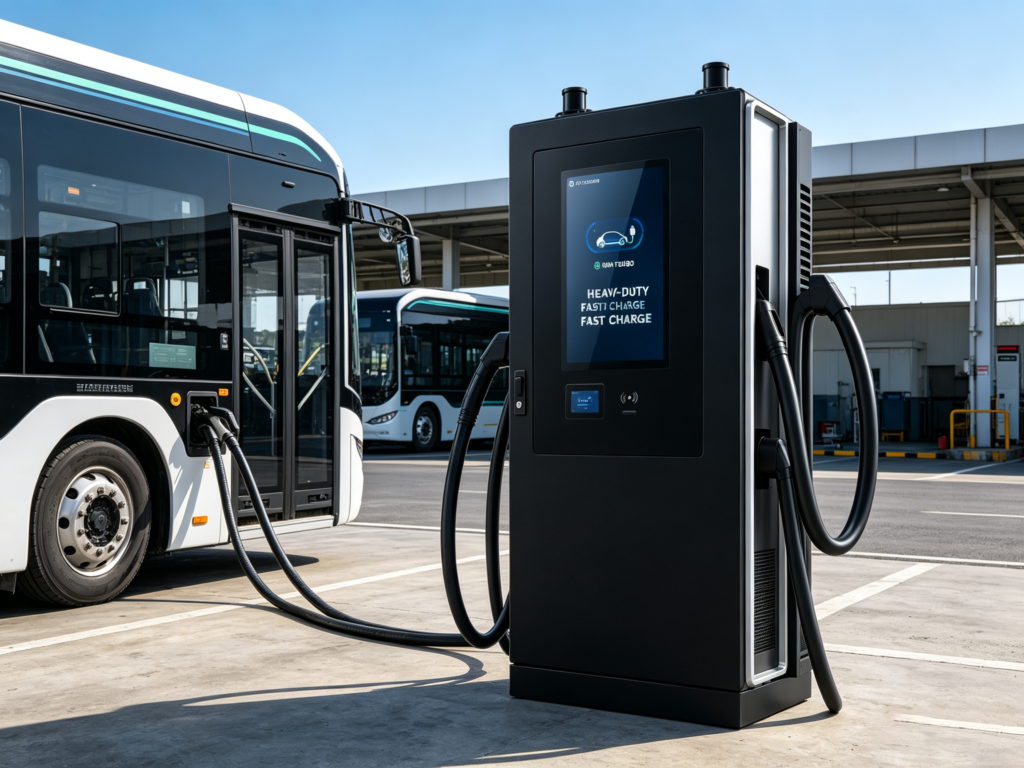

Bus & Truck Terminals
High current + wide voltage range
🚌 Support heavy-duty EVs with 150–1000V wide voltage range and up to 400A current options.
TECHNICAL SPECIFICATIONS
| Parameter | DC80/120KW | DC160/180KW | DC240/320KW |
|---|---|---|---|
| Power Supply | 3P+N+PE | 3P+N+PE | 3P+N+PE |
| Input Voltage | 400V AC ±10% | 400V AC ±10% | 400V AC ±10% |
| Max Input Current | 121A (80kW) / 182A (120kW) | 243A (160kW) / 273A (180kW) | 365A (240kW) / 486A (320kW) |
| Input Frequency | 50/60Hz | 50/60Hz | 50/60Hz |
| Output Voltage | 150-1000V DC | 150-1000V DC | 150-1000V DC |
| Max Current (Optional) | 200A-400A (configurable) | 200A-400A (configurable) | 200A-400A (configurable) |
| Rated Power | 80kW / 120kW | 160kW / 180kW | 240kW / 320kW |
| Efficiency | Max 95% | Max 95% | Max 95% |
| Power Factor | ≥0.99@50%-100% | ≥0.99@50%-100% | ≥0.99@50%-100% |
| THD | ≤5%@100% Load | ≤5%@100% Load | ≤5%@100% Load |
| Ripple Factor | ≤±1% | ≤±1% | ≤±1% |
| Parameter | Specification |
|---|---|
| Advertising Screen | 32-inch Digital Display (Standard) |
| Screen Resolution | 1080p (1920×1080) |
| Screen Brightness | 1500 nits |
| Content Playback | SD card and remote network content update |
| Connector Options | CCS2*2 / CCS1*2 / GBT2 / NACS2 / CCS2+GBT (All power ratings supported) |
| Cable Length | 5m |
| Enclosure | Galvanized Steel |
| Installation | Floor Stand |
| LED Indicator | Green / Yellow / Red |
| Display | 12.1-inch Touch Display |
| Start Mode | App / QR / RFID Card / POS (Optional Software Integration) |
| Cable Management | Optional |
| Product Dimension | 800×800×2020mm (W×D×H) |
| Weight | 270–420kg (varies by configuration) |
| Standalone Operation | Supported |
| Parameter | Specification |
|---|---|
| Ingress Protection | IP54 |
| Impact Protection | IK08 |
| Emergency Stop | Yes |
| Electrical Protection | Over current, Residual current, Short circuit, Surge, Over/Under voltage, Over/Under frequency, Over/Under temperature |
| Cooling Method | Fan Cooling |
| Noise | ≤65dB@22°C |
| Operation Temperature | -30°C ~ +50°C |
| Work Humidity | 5%-95% |
| Work Altitude | <2000m |
| Package Dimension | 1020×820×2190mm |
| External Package | Wood Case |
Specifications may vary depending on configuration, connector type, regional requirements, and product version. Please contact RUNB for the latest technical datasheet and configuration confirmation before placing an order.
Certification & Market Compliance
Current Certifications:
CE
Available Technical Documentation:
Test Reports
Declaration of Conformity
Datasheet
Installation Manual
User Manual
Market-Specific Support:
We can provide technical documentation and cooperate with local partners to support market-specific certification and approval requirements.
Frequently Asked Questions
Turbo combines high-power DC charging (up to 320kW) with a built-in 32-inch digital advertising screen — creating an additional branding and advertising opportunity for site operators while delivering high-throughput charging. The screen features 1080p resolution and 1500 nits brightness, with content playback supported via SD card or remote network update.
Yes. Turbo is available for wholesale and distribution. Contact our sales team for volume pricing, MOQ, and lead time.
Yes. We support custom branding, logo, color, interface, and packaging for distributors and system integrators. Please contact our team with your specific requirements.
We provide installation manuals, wiring diagrams, commissioning guidelines, and CAD drawings. These documents are available upon request or download.
Yes. Turbo natively supports OCPP 1.6 JSON with Wi-Fi, Ethernet, and 4G connectivity. Integration depends on the CMS and system configuration — our team can assist with technical cooperation.
Available connector options include CCS2, CCS1, GB/T, and NACS, subject to model and market requirements. This enables flexible deployment across regions.
2-year standard warranty, subject to the applicable sales agreement.
Typical lead time is approximately 21–45 days, depending on configuration, order quantity, customization, and production schedule. Contact our sales team for current lead time estimates.
Tell Us About Your Charging Project
Our team can recommend the right Turbo configuration based on your site conditions and project requirements.
Country / RegionSite Type: Highway / Fleet Depot / Public Charging / Retail / Bus / TruckAvailable Grid Capacity: _____ kWTarget Vehicle Types: Passenger EVs / Vans / Buses / Trucks / MixedRequired Power: 80-120kW / 160-180kW / 240-320kW / Not SureConnector Type: CCS2 / CCS1 / GBT / NACSEstimated Quantity: _____ UnitsExpected Deployment Date: _____Advertising Screen Required: Yes / No
Ready to Deploy High-Power DC Charging with Advertising Value?
Whether you're a CPO, fleet operator, distributor, or installer — our team can help you find the right Turbo configuration for your project. Get a quote or download the datasheet to get started.
