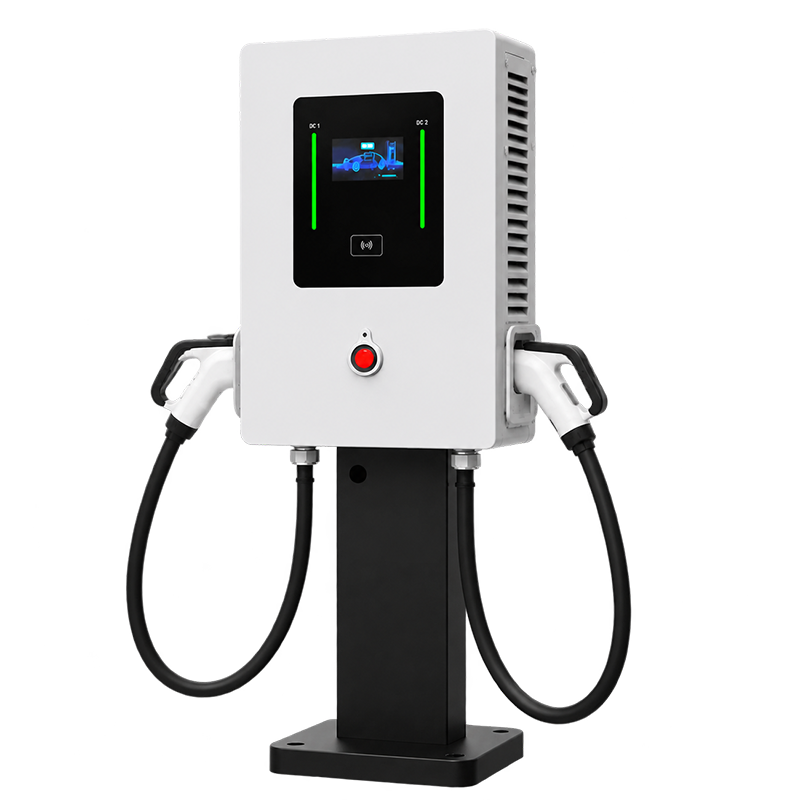

Compact 60–80kW DC Fast Charger for Commercial Charging
Dual-Gun CCS2 | 200–1000V DC | Only 265mm Deep | Built for Space-Constrained Sites
SmartEco brings commercial DC fast charging to sites where space, installation footprint, and investment efficiency matter. With dual-gun CCS2 output, wide voltage compatibility, and OCPP 1.6 JSON connectivity, it offers an accessible entry point into DC charging infrastructure — without the footprint of a conventional fast charger.
SmartEco Series — At a Glance
| 60–80kW | 2 | 265mm | 200–1000V | OCPP 1.6 JSON |
|---|---|---|---|---|
| ⚡ Total DC Output | 🔌 CCS2 Connectors | 📐 Cabinet Depth | 📊 Wide DC Voltage | 🌐 Backend Ready |
DC Fast Charging Without the Heavy Footprint
SmartEco is designed for commercial sites that need DC fast charging but do not require the footprint, capacity, or investment level of a large high-power charging system.
Available in 60kW and 80kW configurations, it delivers practical DC power for retail parking, hotels, office buildings, and small fleet operations. With a slim 265mm depth — significantly shallower than conventional DC chargers — it fits easily into space-constrained environments where larger equipment cannot be installed.
Why SmartEco — Compact Power for Commercial Entry Points
📐Only 265mm Deep
Fits where conventional DC chargers cannot. The slim cabinet depth simplifies site planning where parking space, equipment clearance, or cabinet placement is limited.
🔌Dual-Gun CCS2 Charging
Two CCS2 connectors allow simultaneous charging of two vehicles, increasing site throughput and utilization with a single charging cabinet.
📊200–1000V Wide Voltage Range
Broad voltage compatibility supports a wide range of EVs — from passenger cars to light commercial vehicles and vans.
🌐 OCPP 1.6 JSON Ready
Native OCPP support with Ethernet standard (Wi-Fi/4G optional) enables integration with compatible charging management platforms.
🛡️ Rugged & Reliable
IP54 and IK08 protection with galvanized steel enclosure ensures reliable operation in outdoor commercial environments.
Designed Around Your Site Economics
| 2 Vehicles | 265mm | 60–80kW |
|---|---|---|
| 🔌 One dual-gun charging unit | 📐 Compact cabinet depth | ⚡ Commercial DC power |
Less space. Practical power. Easier deployment. SmartEco makes commercial DC charging accessible for sites where conventional fast chargers are simply too large.
Find the Right Configuration for Your Site
Select the power rating that matches your project requirements and site conditions.
| 60kW | 80kW |
|---|---|
| ⚡ 60kW Total Output | ⚡ 80kW Total Output |
| Choose 60kW if: • Limited site power capacity • Lower daily charging demand • Hotels / offices / retail • Small fleets • Entry-level deployment | Choose 80kW if: • Higher utilization expected • More daily charging sessions • Fleet operations • Growing EV traffic • Commercial parking |
| Typical Buyer: Property Owner / Installer / Small Fleet | Typical Buyer: CPO / Fleet Operator / EPC |
Not sure which configuration fits your project? Tell us your available grid capacity and expected daily sessions.
Integration & Connectivity — Built for Network Operations
OCPP 1.6 JSON enables integration with compatible charging management platforms. Available backend functions — including remote monitoring, dynamic load management, billing, and OTA updates — depend on the CMS and system configuration.
| Charger (SmartEco) | CMS / Backend | End User |
|---|---|---|
| OCPP 1.6 JSON (Native) | Remote Monitoring | App |
| Ethernet (Standard) | Configuration Management | QR Code |
| Wi-Fi / 4G (Optional) | Data Analytics | RFID Card |
| — | Billing (CMS-dependent) | POS (Optional) |
Remote monitoringBilling and payment processingData analytics and reporting
Applications — Where HyperCharge Fits

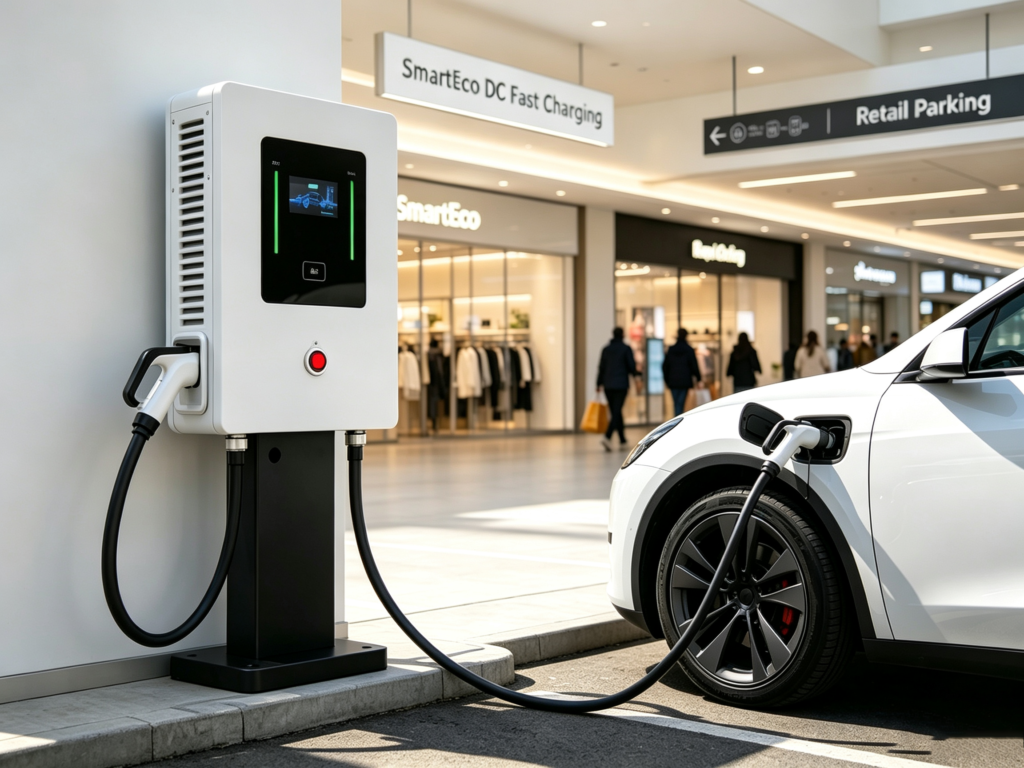

Retail & Mall Parking
Revenue + Throughput
Dual-gun charging helps increase charging availability without requiring a large equipment footprint.
🛍️ Turn parking spaces into revenue-generating assets. Dual-gun CCS2 charging attracts EV-driving shoppers while maximizing throughput in valuable retail real estate.

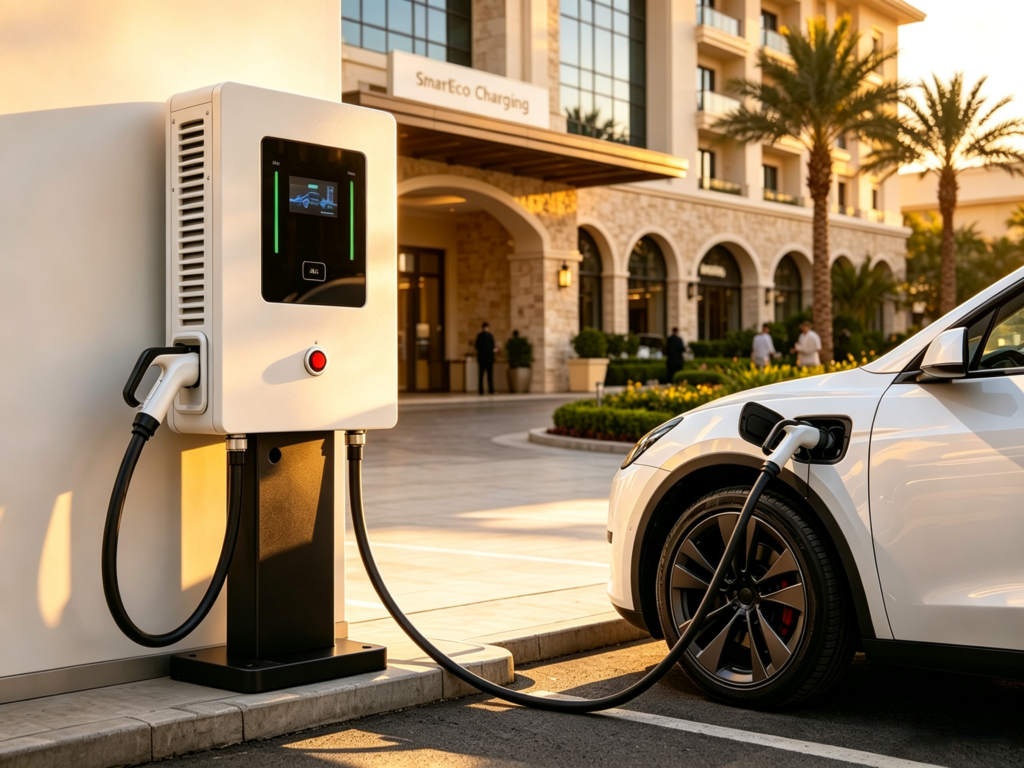

Hotels & Resorts
Guest Experience + Space
265mm cabinet depth helps preserve valuable parking and valet space.
🏨 Differentiate your property with guest EV charging. The ultra-thin 265mm design preserves valuable parking space while adding a premium service that boosts guest satisfaction and booking preference.
Office Buildings
Employee Retention + Sustainability
Compact design fits existing garage layouts without major structural changes.
🏢 Support employee EV adoption and meet sustainability goals without sacrificing valuable parking space. Compact design fits easily into existing commercial garage layouts.

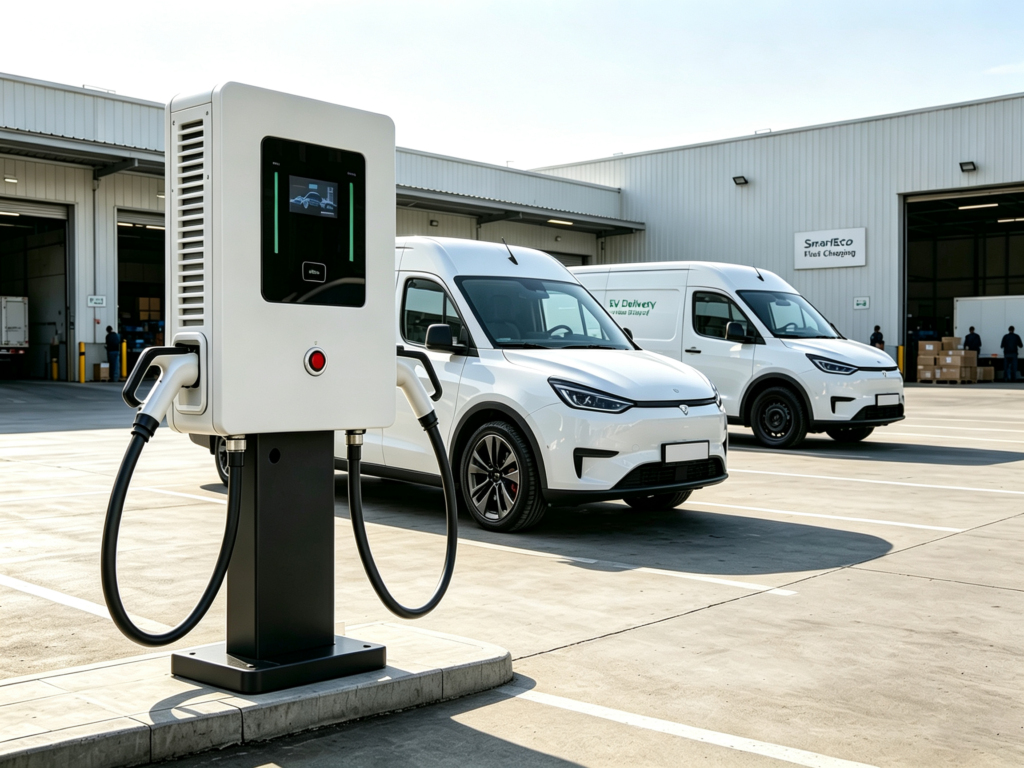

Small Fleet Depots
Operations + Reliability
Reliable daily charging with OCPP integration for fleet management.
🚚 Keep light commercial fleets running with reliable daily charging. OCPP integration enables fleet management and scheduling, while the compact footprint fits tight depot layouts.
Installation & Support — Built for Installers and Distributors
Part A: Installation Requirements
| Parameter | Specification |
|---|---|
| Power Supply | 400V AC ±10%, 3P+N+PE |
| Installation Type | Floor Stand |
| Cable Length | 5m (standard) |
| Operating Temperature | -30°C to +50°C |
| Ingress Protection | IP54 |
| Impact Protection | IK08 |
| Communication | Ethernet (Standard) / Wi-Fi / 4G (Optional) |
| Dimensions (W×D×H) | 700×1000×265mm |
| Weight | 110-120kgs |
Part B: For Distributors, Wholesalers & Installers
| Buyer Concern | RUNB Support |
|---|---|
| 📦 Bulk Orders / Wholesale | Available. Contact our sales team for volume pricing. |
| 🏷️ OEM / Private Label | Custom logo, color, interface, and product branding available. Subject to MOQ and engineering review. |
| 🔌 Connector Configuration | CCS2*2 standard. Other connector options available upon request. |
| 📄 Technical Documentation | Datasheets, manuals, CAD drawings, test reports, and certificates available. |
| 🛠️ Installation Support | Installation manuals, wiring diagrams, and commissioning guidelines provided. |
| 🌐 OCPP Integration | Native OCPP 1.6 JSON support for CMS integration. |
| ✅ Warranty | 2-year standard warranty, subject to the applicable sales agreement. |
| 🔧 Spare Parts | Available. Contact our sales team for details. |
| 🚢 Global Shipping | Available. Contact our sales team for shipping and logistics details. |
TECHNICAL SPECIFICATIONS
| Parameter | DC60KW | DC80KW |
|---|---|---|
| Input | ||
| Power Supply | 3P+N+PE | 3P+N+PE |
| Input Voltage | 400V AC ±10% | 400V AC ±10% |
| Max Input Current | 121.69A | 91.26A |
| Input Frequency | 50/60Hz | 50/60Hz |
| Power Factor | ≥0.99@50%-100% | ≥0.99@50%-100% |
| THD | ≤5%@100% Load | ≤5%@100% Load |
| Output | ||
| Rated Power | 60kW | 80kW |
| Output Voltage | 200-1000V DC | 200-1000V DC |
| Max Output Current | 91.27A | 121.69A |
| Number of Outputs | 2 (CCS2*2) | 2 (CCS2*2) |
| Power Distribution | Dynamic power allocation | Dynamic power allocation |
| Efficiency | Max 95% | Max 95% |
| Ripple Factor | ≤±1% | ≤±1% |
⚠️ Power Distribution Note: Total output power is shared between two connectors. Actual power to each vehicle depends on the selected configuration and charging demand.
| Parameter | Specification |
|---|---|
| Connector | CCS2*2 (Standard)/GBT/CCS1/NACS |
| Cable Length | 5m |
| Enclosure | Galvanized Steel |
| Installation | Floor Stand |
| LED Indicator | Green / Yellow / Red |
| Display | 7-inch Touch Display |
| Start Mode | App / QR / RFID Card / POS (Optional Software Integration) |
| Cable Management | Optional |
| Product Dimension (W×D×H) | 700*1000*265mm |
| Weight | 110-120KGS |
| Standalone Operation | support |
| Parameter | Specification |
|---|---|
| Ingress Protection | IP54 |
| Impact Protection | IK08 |
| Emergency Stop | Yes |
| Electrical Protection | Over current, Residual current, Short circuit, Surge, Over/Under voltage, Over/Under frequency, Over/Under temperature |
| Cooling Method | Fan Cooling |
| Noise | ≤65dB@22°C |
| Operation Temperature | -30°C ~ +50°C |
| Work Humidity | 5%-95% |
| Work Altitude | <2000m |
| Package Dimension | 1200×870×500mm |
| External Package | Wood Case |
Specifications may vary depending on configuration, connector type, regional requirements, and product version. Please contact RUNB for the latest technical datasheet and configuration confirmation before placing an order.
Certification & Market Compliance
Current Certifications:
CECompliant with: EN IEC 61851-1:2019, IEC 61851-1:2017, IEC 61851-1:2018, EN 61851-1:2018
Available Technical Documentation:
Test ReportsDeclaration of ConformityDatasheetInstallation ManualUser Manual
Market-Specific Support:We can provide technical documentation and cooperate with local partners to support market-specific certification and approval requirements.
Frequently Asked Questions
SmartEco offers a compact, cost-effective entry point into DC fast charging with a slim 265mm depth — making it ideal for space-constrained commercial environments where larger chargers cannot be installed. It delivers reliable 60–80kW charging with dual-gun CCS2 output.
Pricing depends on power configuration, connector configuration, quantity, customization, destination, and shipping terms. Contact RUNB for a project-based quotation.
To prepare a suitable quotation, please provide your destination country, required power, quantity, connector type, installation type, and expected deployment timeline. If available, grid capacity and site information can also help us recommend the right configuration.
Yes. SmartEco is available for wholesale and distribution. Contact our sales team for volume pricing, MOQ, and lead time.
Yes. We support custom branding, logo, color, interface, and packaging for distributors and system integrators. Subject to MOQ and engineering review. Please contact our team with your specific requirements.
Yes. SmartEco natively supports OCPP 1.6 JSON with Ethernet as standard (Wi-Fi/4G optional). Integration depends on the CMS and system configuration — our team can assist with technical cooperation.
2-year standard warranty, subject to the applicable sales agreement.
Typical lead time is approximately 21–45 days, depending on configuration, order quantity, customization, and production schedule. Contact our sales team for current lead time estimates.
