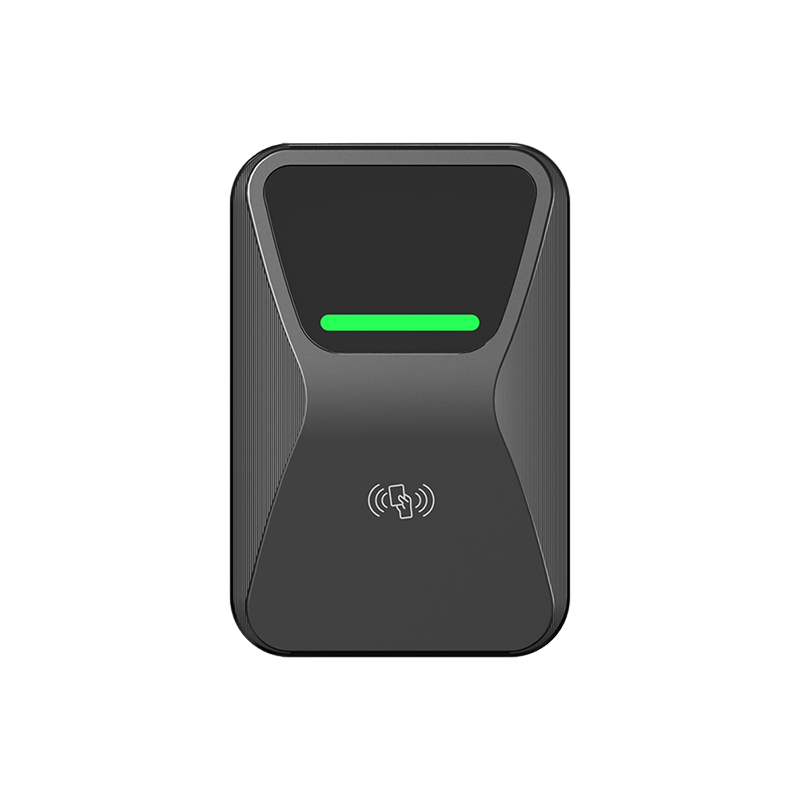

RUNB PulseCharge Series AC Charger 7kW/11kW/22kW | EU/US Standard | OCPP 1.6 | IP54/IK08 | CE Certified
Smart AC EV charging station for residential, commercial, and fleet use. Supports Type 1/2/NACS/GBT, wall/pole mount, -30°C~+50°C, IP54 waterproof. Ideal for South America, Central Asia, Southeast Asia. Get your customized solution now.
Smart Charging Power Built for Emerging Markets
The EV revolution is accelerating across South America, Central Asia, and Southeast Asia. Charging infrastructure is expanding at an unprecedented pace. What you need is not just a simple charger, but a reliable partner that can handle diverse climates, meet international certifications, enable remote management, and adapt to local payment ecosystems.
The PulseCharge Series is designed exactly for this purpose – combining high‑efficiency charging, intelligent connectivity, and rugged durability. It helps you capture market opportunities while ensuring every charging session is safe, seamless, and worry‑free for end users.
Why PulseCharge Fits Your Region
🌎 South America
Brazil already has over 25,000 public charging points; Chile leads with 8.04 chargers per 100 EVs. Demand is soaring.
Our edge: CE/CB/RoHS certified, compliant with IEC 61851, and available with Type 2/Type 1/NACS connectors – ready for the diverse EV models in the region.
Wide operating temperature (-30°C to +50°C) ensures stable performance from the Andean highlands to tropical coastlines.
🌏 Central Asia
Kyrgyzstan plans to import 15,000 EVs in 2026, while Uzbekistan targets 4,000 charging stations by year‑end.
Our edge: OCPP 1.6 Jison optional for easy integration with local networks and payment platforms. We can also assist with GOST‑UZ and other local certifications.
IK10 impact protection and robust build withstand continental climate extremes – from bitter winters to scorching summers.
🌴 Southeast Asia
ASEAN’s charging station market grows at over 30% CAGR; Indonesia aims for 30,000 public stations by 2030.
Our edge: IP65 waterproof/dustproof and 5%~95% humidity tolerance – engineered for tropical heat and coastal corrosion. RFID reader supports local access/payment cards.
Built‑in Wi‑Fi, Ethernet, and Bluetooth allow remote O&M, reducing on‑site maintenance costs.
Key Selling Points – Make Your Network Stand Out
⚡ Dynamic Fast Charging, Universal Compatibility
Choose from 7kW, 11kW, or 22kW models. Supports Type 1, Type 2, NACS, and GBT connectors (optional). 5‑meter cable length. Suitable for both home and commercial use.📡 Smart Connectivity, Effortless Operation
Standard Wi‑Fi + Ethernet + Bluetooth. Optional OCPP 1.6 Jison for integration with third‑party management platforms – remote monitoring, billing, and firmware upgrades made easy.🛡️ Rugged Protection, Long‑Lasting
IP54 (dust/water resistant) + IK08 (impact resistant) + 30mA Type A + 6mA DC residual current protection. Comprehensive safeguards against overvoltage, overcurrent, overtemperature, and surges.🌡️ All‑Weather Performance
Operating temperature -30°C to +50°C, altitude up to 2000m, noise ≤60dB. Ideal for outdoor parking, underground garages, and seaside installations.📱 User‑Friendly Interaction
Tri‑color LED indicator (green/yellow/red). Three start modes: Plug & Charge, RFID card, or mobile App – accommodating diverse user habits.🔌 Flexible Installation
Wall‑mounted or pole‑mounted (optional). Compact dimensions: 320×198×94 mm (H×W×D), net weight only 4‑6 kg – low shipping costs and easy logistics.
Technical Specifications (At a Glance)
| Parameter | Specification |
|---|---|
| Models | AC07K05 (7kW) / AC11K05 (11kW) / AC22K05 (22kW) |
| Power Supply | 1P+N+PE (7kW) / 3P+N+PE (11/22kW) |
| Rated Voltage | 220V AC (7kW) / 400V AC (11/22kW) |
| Rated Current | 32A (7kW) / 16A (11/22kW) |
| Frequency | 50/60 Hz |
| Connector Options | Type 2 / Type 1 / NACS / GBT (optional) |
| Cable Length | 5m |
| Enclosure Material | PC943 (flame‑retardant) |
| Protection Rating | IP54 / IK08 |
| RCD Protection | 30mA Type A + 6mA DC |
| Communication | Wi‑Fi + Ethernet + Bluetooth (standard); OCPP 1.6 Jison (optional) |
| Start Modes | Plug & Charge / RFID / App |
| Operating Temperature | -30°C ~ +50°C |
| Operating Humidity | 5% ~ 95% |
| Noise | ≤60dB |
| Dimensions | 320×198×94 mm (H×W×D) |
| Net Weight | 4‑6 kg |
| Warranty | 2 years |
Why Choose RUNB?
10+ years of EV charging experience, exporting to over 50 countries – we understand emerging markets deeply.
End‑to‑end service – from product selection, customization, certification assistance, to after‑sales training.
Flexible customization – logo, cable color, connector type, and software interface can be tailored to your needs.
Reliable delivery – standardized production ensures short lead times even for large orders.
2‑year warranty plus remote diagnostic support – lowering your operational costs.

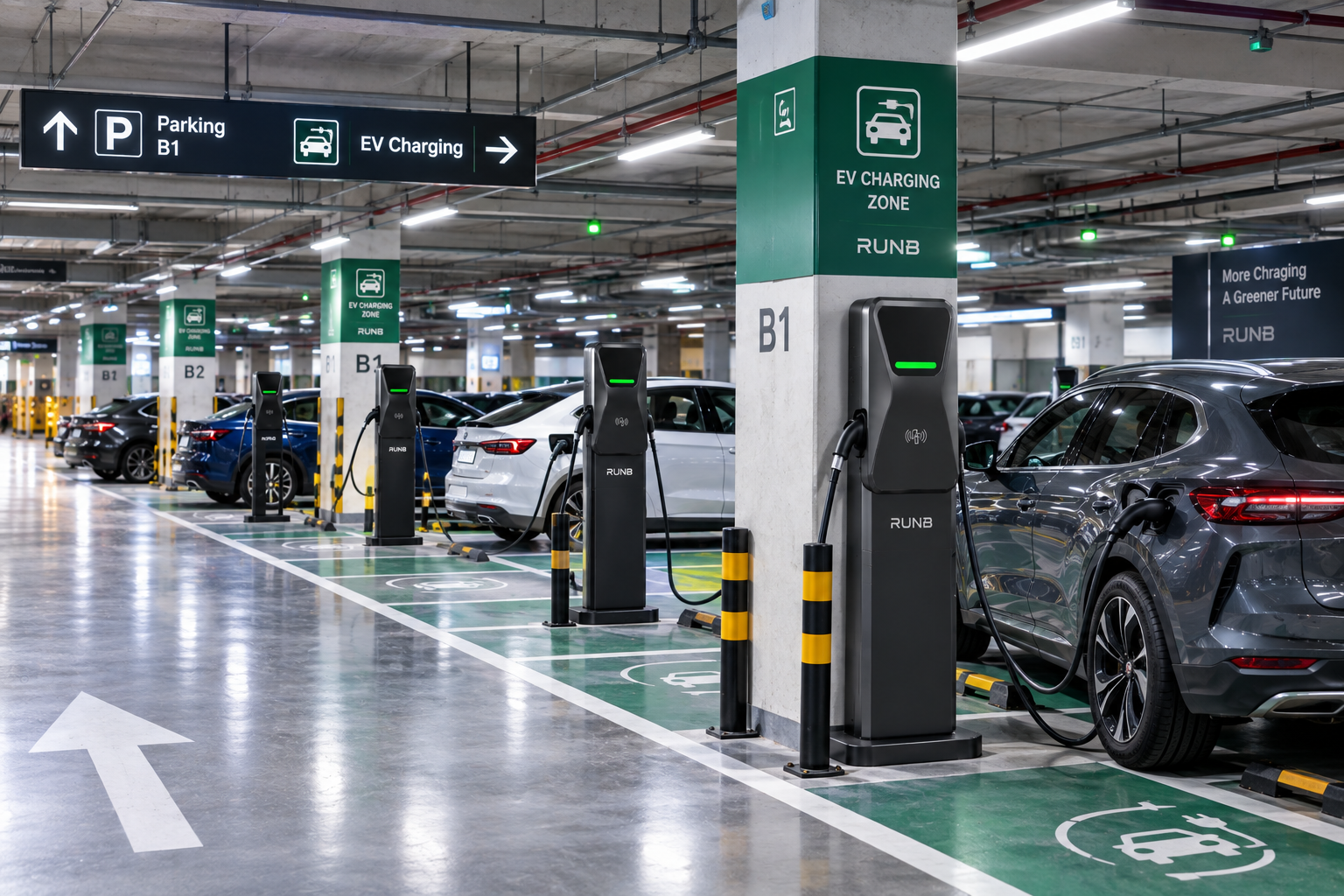

Ideal Applications

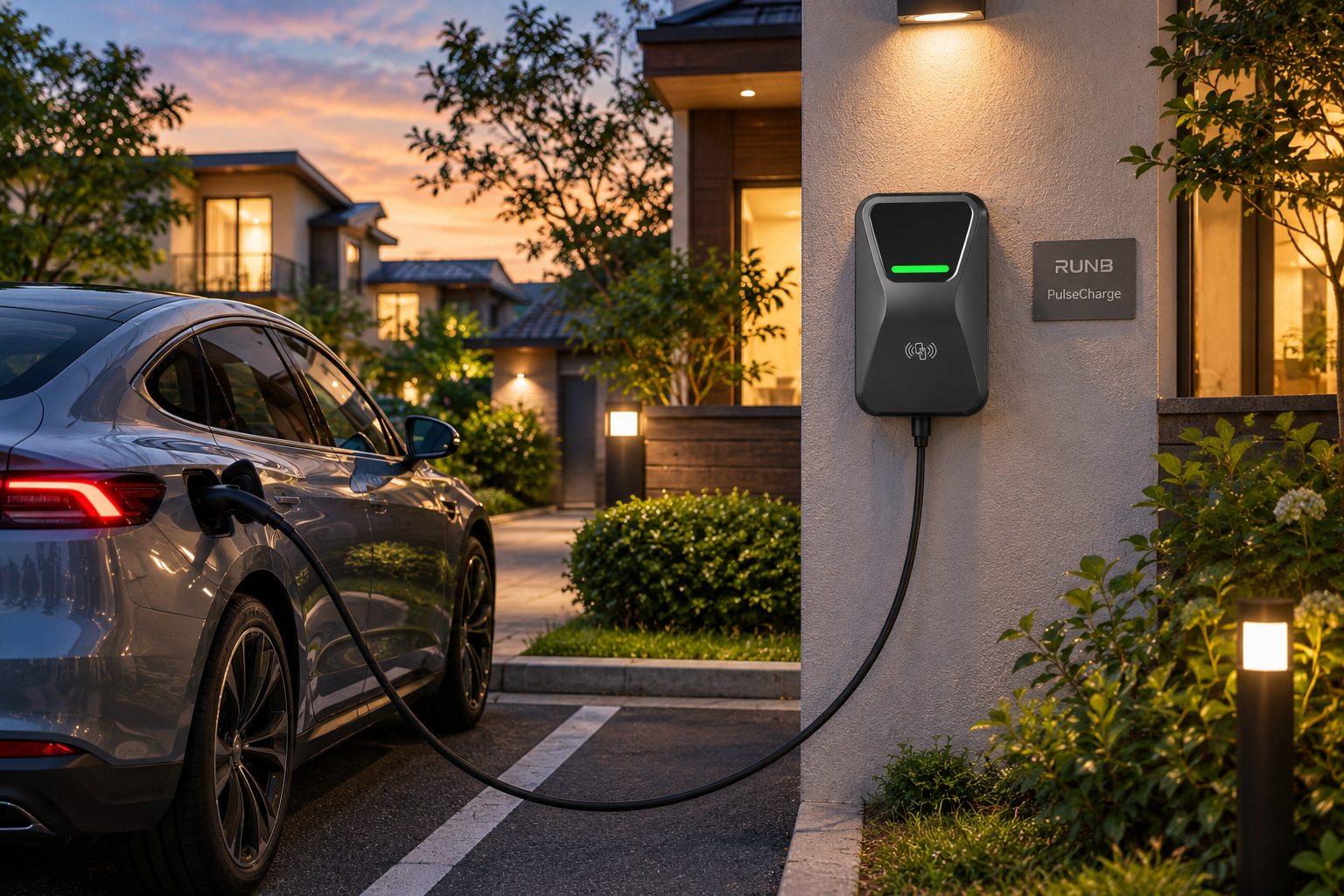

🏠 Residential communities – quiet overnight charging for homeowners.

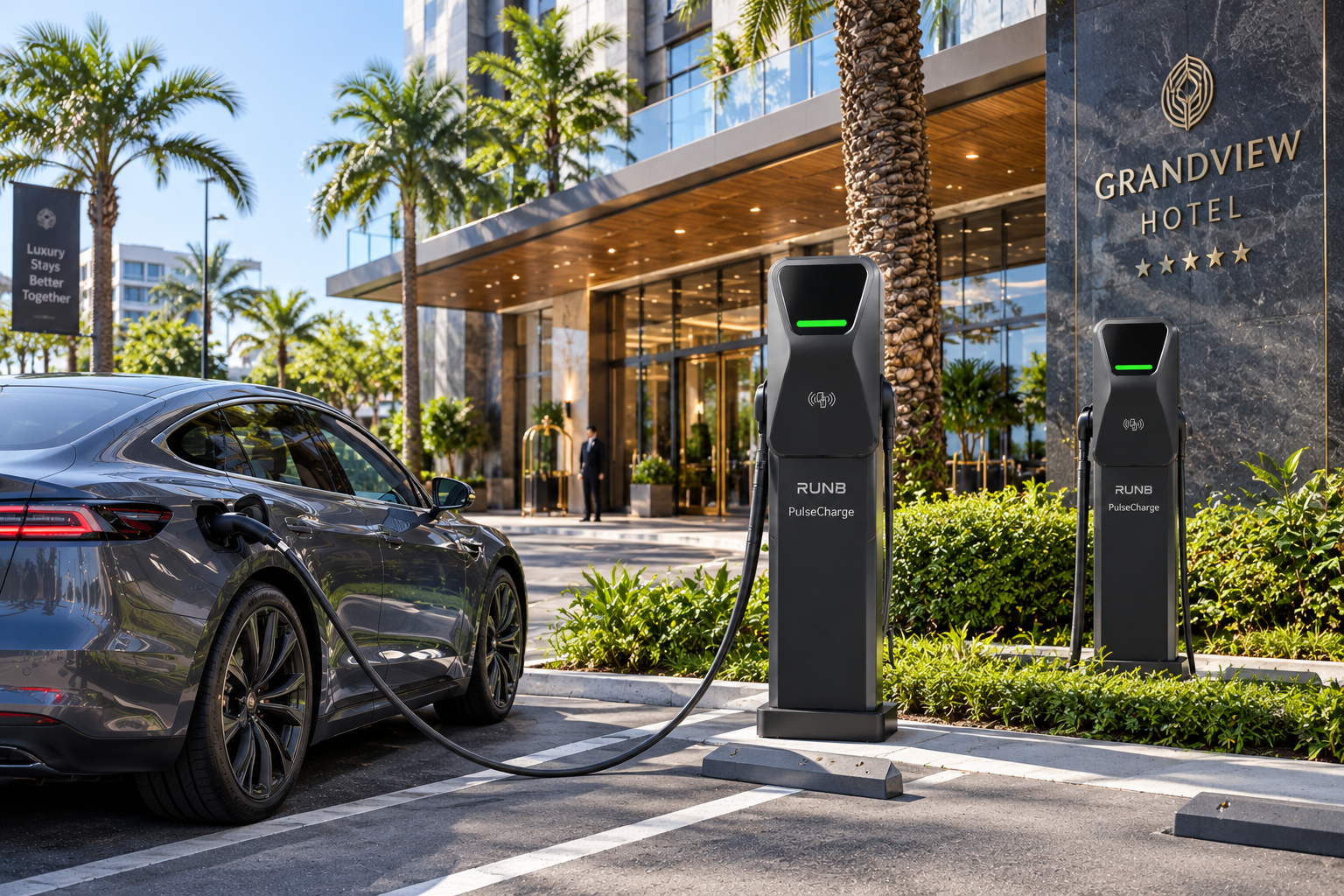

🏢 Commercial properties – hotels, shopping malls, office buildings – attract EV‑driving customers.

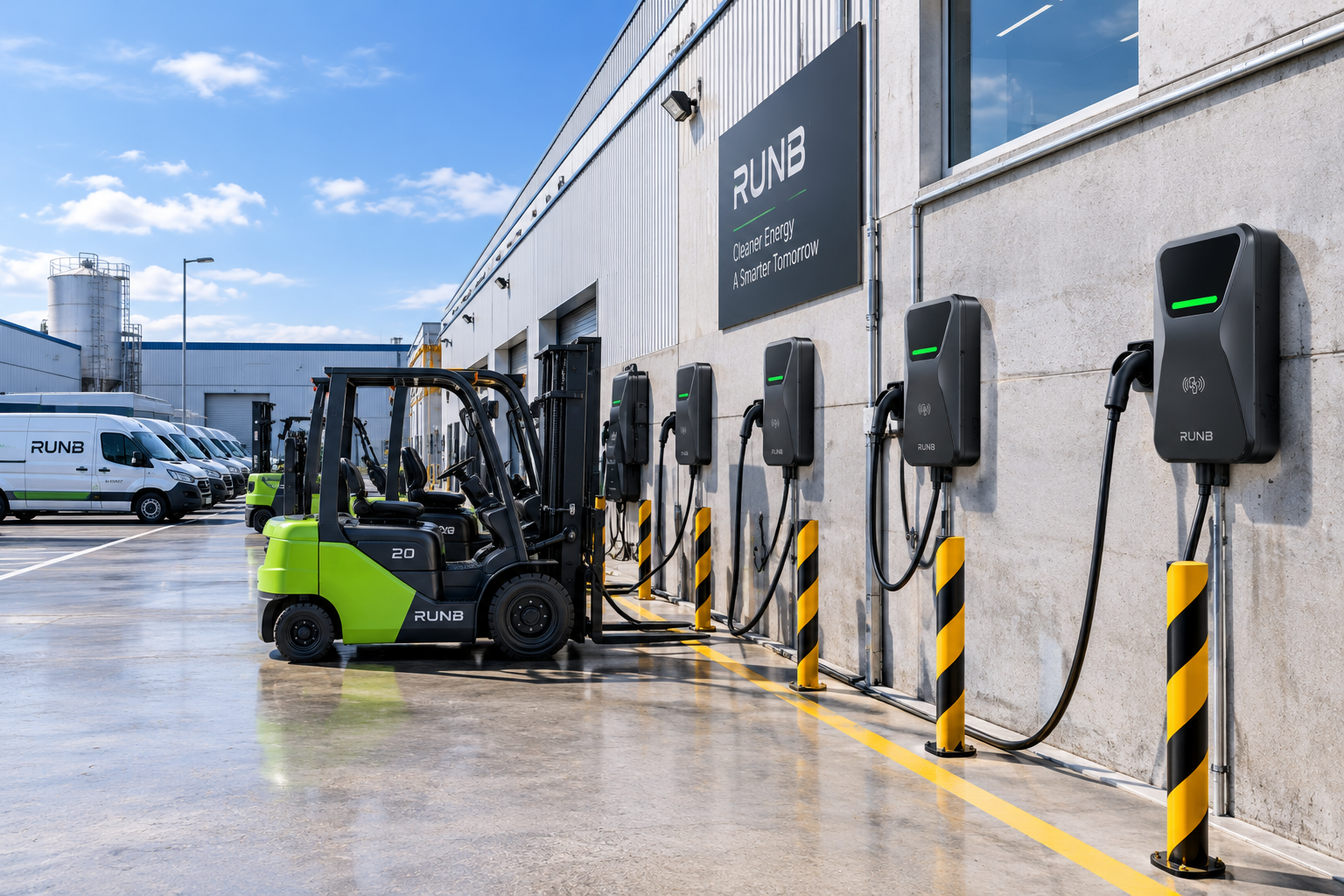

🏭 Industrial parks – employee commuting and logistics fleet charging.
🅿️ Public parking lots – wall or pole mount, multiple payment options.
🚚 Fleet depots – centralized monitoring and scheduling for multiple chargers.
Frequently Asked Questions
MOQ depends on model and customization. Please contact our sales team – we are flexible with sample and small‑batch orders.
Yes, it is available as an optional feature, allowing integration with major network platforms.
Stock items ship immediately; custom orders take about 25‑35 days. Sea freight time varies by destination.
Absolutely. We work with partner labs and consultants to assist you in obtaining the required local approvals.
Take Action – Seize the EV Infrastructure Opportunity
Whether you are a charge point operator, project contractor, property developer, government agency, or regional distributor, the PulseCharge Series offers a cost‑effective, reliable solution tailored to your market.
👉 Contact us today to get:
Detailed product brochure and price list
Certification support plan for your country
Customized samples and delivery schedule
Local installation and after‑sales recommendations
