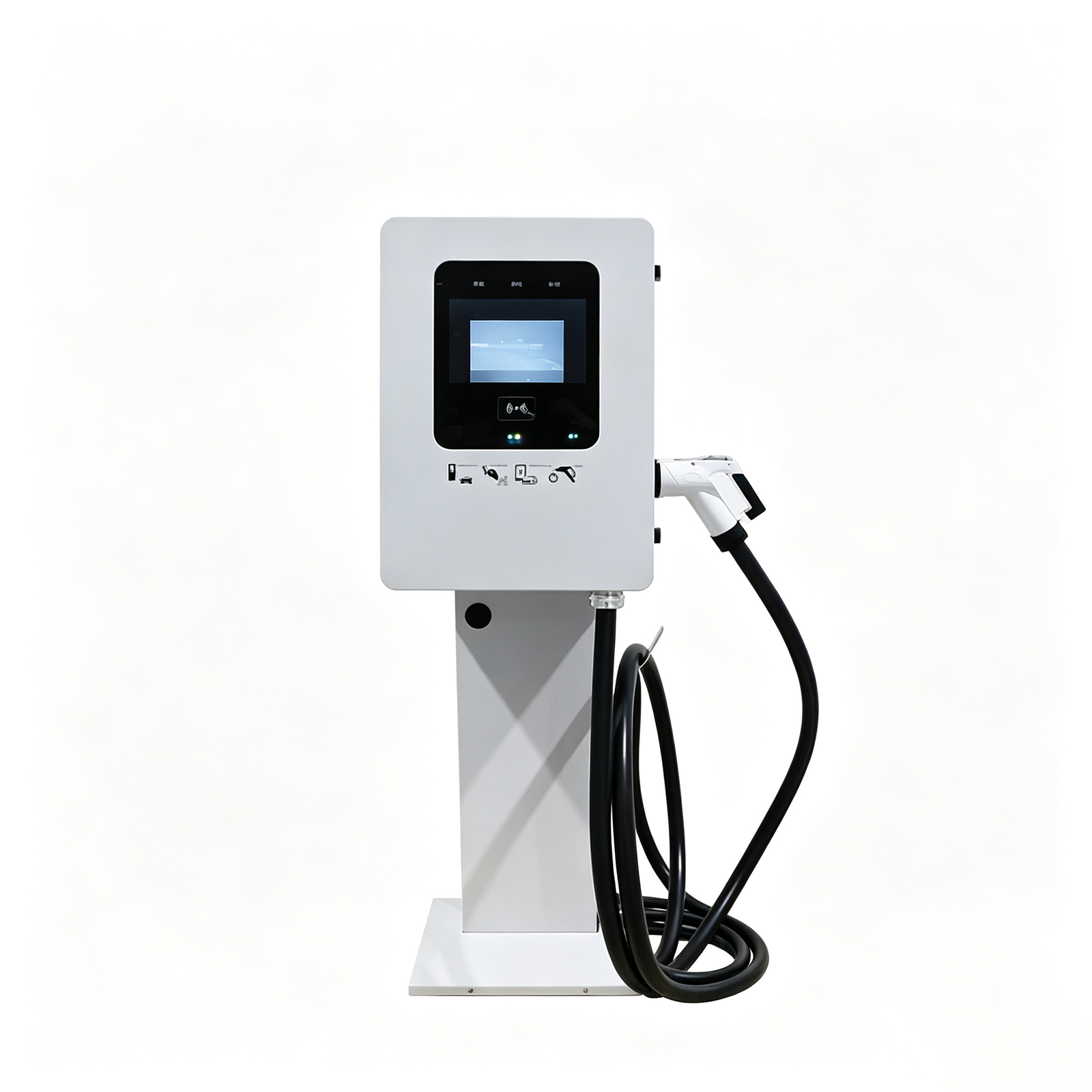

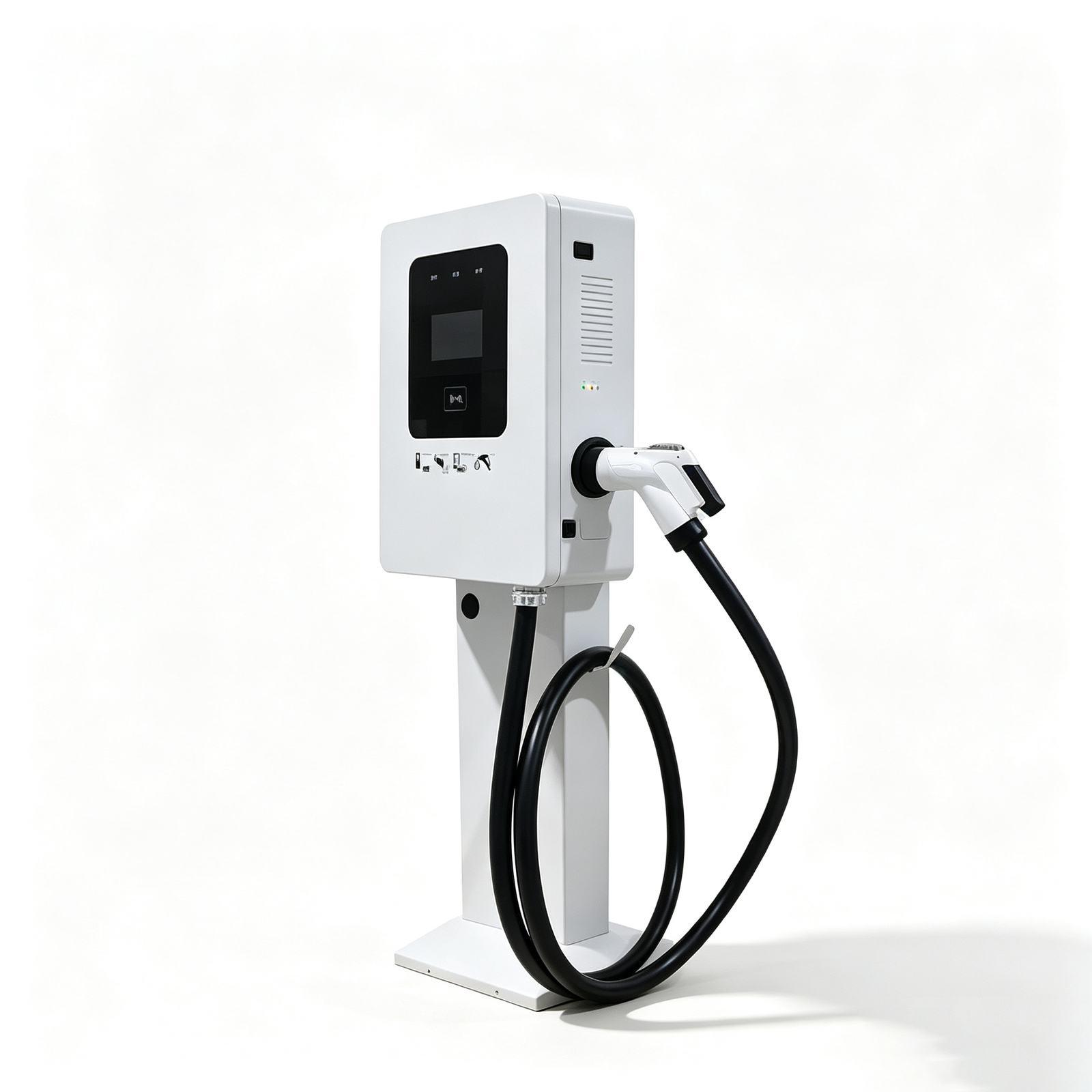

PowerFlex Series DC Charger
20–40kW | Compact DC Charging for Commercial & Fleet Applications
Designed for commercial sites, fleet depots, retail parking, and destination charging, the PowerFlex Series delivers reliable DC charging in a compact, service-friendly footprint. With OCPP 1.6 JSON, 7-inch touch control, flexible connectivity, and multiple payment options, it gives operators a practical solution for deploying DC charging where space and infrastructure matter.
Compact DC Charging, Built for Commercial Deployment
Available in 20kW, 30kW and 40kW configurations, PowerFlex is designed for sites that need faster charging than AC without the infrastructure footprint of high-power DC charging. It occupies the practical middle ground — delivering DC speed where it matters, in a package that fits real-world commercial spaces.
⚡
20–40kW DC Output🔌
CCS2 / CCS1 / GBT / NACS (Optional)📱
OCPP 1.6 JSON🛡️
IP54 / IK08🌡️
-30°C ~ +50°C
Compact DC Power
20–40kW DC output in a space-efficient commercial charging platform.
Wide Voltage Range
200–1000V DC output supports a broad range of EV battery architectures.
Smart Connectivity
OCPP 1.6 JSON with Wi-Fi, Ethernet and 4G for backend integration and remote management.
Flexible User Access
Start charging via App, QR code, RFID, or optional POS integration.
Service-Friendly Design
Modular architecture simplifies maintenance and replacement, helping reduce service downtime.
Choose Your Power — Selection Guide
Not sure which power rating fits your project? Here‘s a quick guide to help you decide.
| DC20KW | DC30KW | DC40KW |
|---|---|---|
| ⚡ 20kW Output | ⚡ 30kW Output | ⚡ 40kW Output |
| 🅿️ Best for: Retail parking, destination charging, hotels | 🅿️ Best for: Commercial parking, mixed-use fleets | 🅿️ Best for: Higher-utilization sites, fleet depots |
| 🚗 Ideal for sites with lower daily turnover | 🚗 Balanced performance for growing EV traffic | 🚗 Maximizes charging throughput in limited spaces |

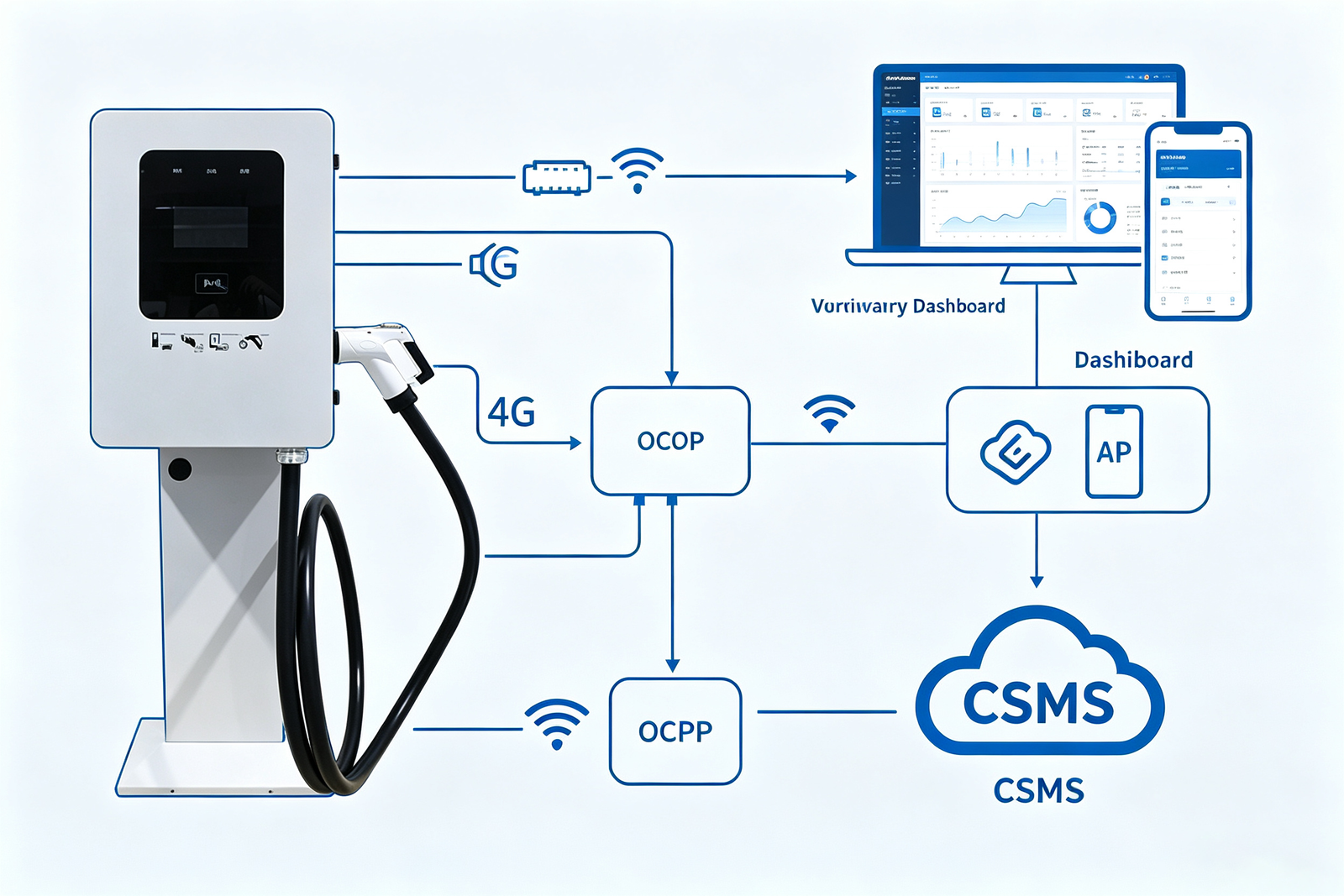

Smart & Connected — OCPP-Ready Charging Infrastructure
PowerFlex is built for network integration. Native OCPP 1.6 JSON support, combined with Wi-Fi, Ethernet, and 4G connectivity, enables remote monitoring, dynamic load management, smart billing, and seamless backend integration — whether you‘re operating a single unit or an entire fleet charging network.
📡
OCPP 1.6 JSON (Native)📶
Wi-Fi / Ethernet / 4G (All Standard)📱
App / QR / RFID / POS Start Modes💻
Remote Monitoring & Firmware Updates
Built for Diverse Commercial Environments
🛡️ IP54
Dust and water resistance for outdoor and semi-outdoor installations
💪 IK08
Impact protection for public and high-traffic areas
🌡️ -30°C ~ +50°C
Reliable operation in extreme climates
💧 5–95% RH
Engineered for tropical and humid environments
Applications — Where PowerFlex Fits

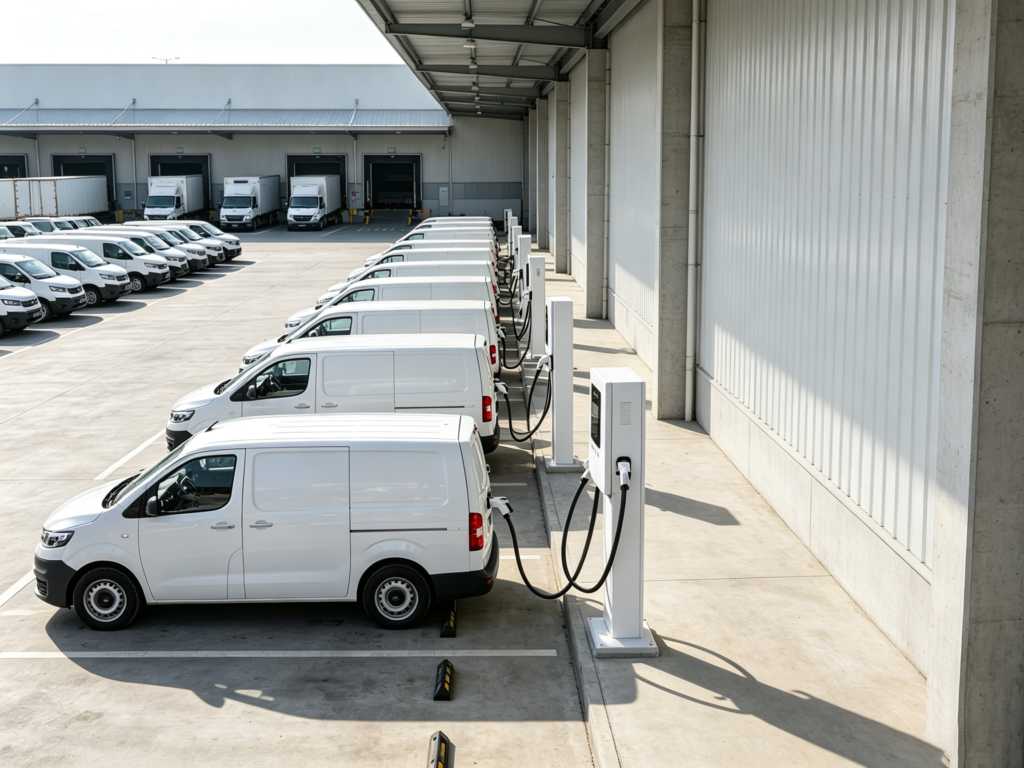

Fleet Depots
🚚 Compact DC charging for predictable fleet operations.

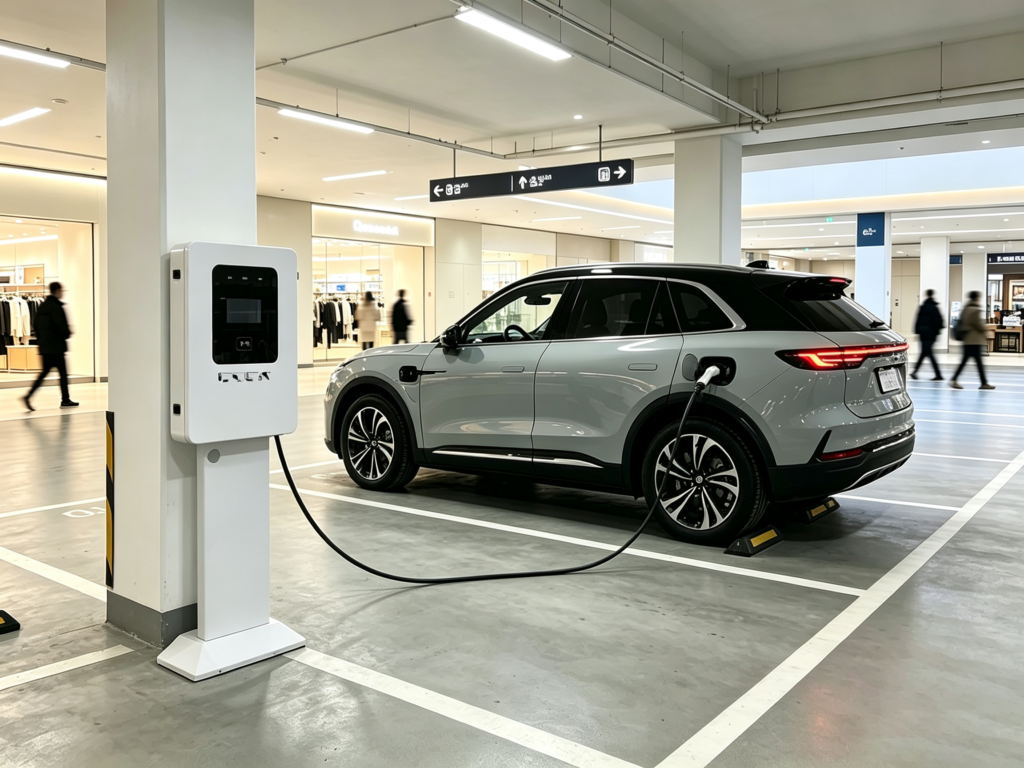

Retail & Malls
🛍️ Add faster charging without dedicating large spaces to high-power infrastructure.

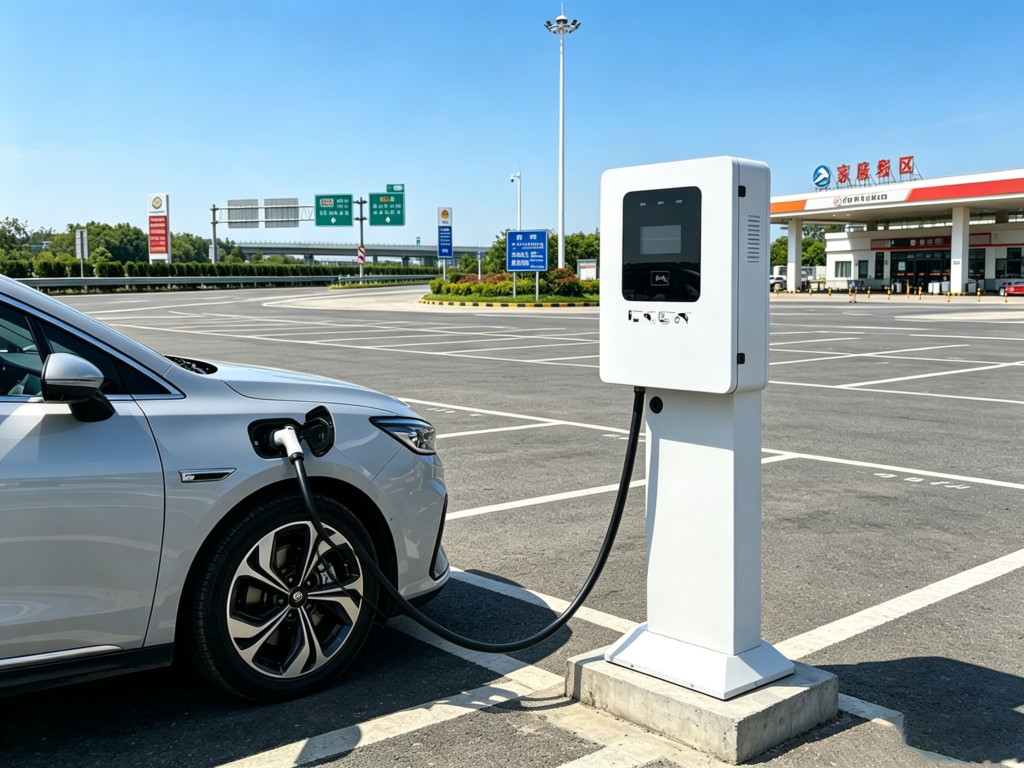

Highway Service Areas
🛣️ Quick turnaround charging for travelers between cities.

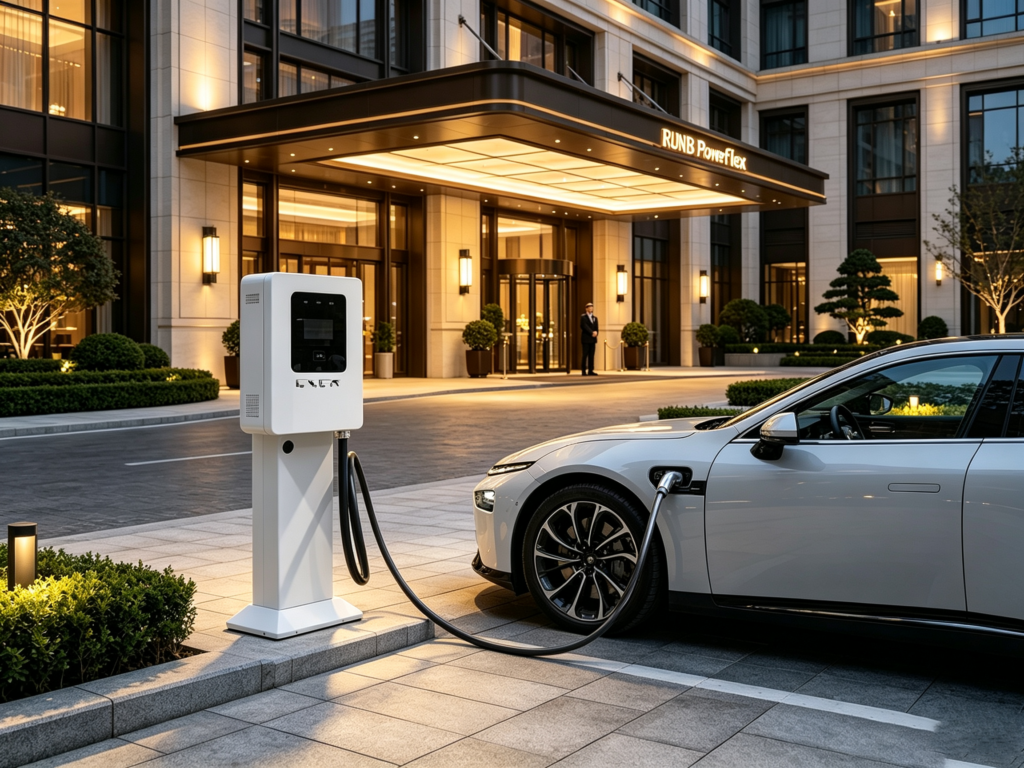

Hotels & Hospitality
🏨 Offer convenient DC charging as an added guest service.
| Parameter | DC20KW | DC30KW | DC40KW |
|---|---|---|---|
| Power Supply | 3P+N+PE | 3P+N+PE | 3P+N+PE |
| Input Voltage | 400V AC ±10% | 400V AC ±10% | 400V AC ±10% |
| Max Input Current | 30.42A | 45.63A | 60.85A |
| Input Frequency | 50/60Hz | 50/60Hz | 50/60Hz |
| Output Voltage | 200-1000V DC | 200-1000V DC | 200-1000V DC |
| Max Current | 66.7A | 100A | 125A |
| Rated Power | 20kW | 30kW | 40kW |
| Efficiency | Max 95% | Max 95% | Max 95% |
| Power Factor | ≥0.99@50%-100% | ≥0.99@50%-100% | ≥0.99@50%-100% |
| THD | ≤5%@100% Load | ≤5%@100% Load | ≤5%@100% Load |
| Ripple Factor | ≤±1% | ≤±1% | ≤±1% |
| Parameter | Specification |
|---|---|
| Connector Options | CCS2 / CCS1 / GBT / NACS (Optional) |
| Cable Length | 5m |
| Enclosure | Galvanized Steel |
| Installation | Floor-standing / Wall-mounted |
| LED Indicator | Green / Yellow / Red |
| Display | 7-inch Touch Screen |
| Start Mode | App / QR / RFID Card / POS (Optional) |
| Cable Management | Optional |
| Product Dimension | 550×260×700mm (W×D×H) |
| Parameter | Specification |
|---|---|
| Ingress Protection | IP54 |
| Impact Protection | IK08 |
| Emergency Stop | Yes |
| Electrical Protection | Over current, Residual current, Short circuit, Surge, Over/Under voltage, Over/Under frequency, Over/Under temperature |
| Cooling Method | Fan Cooling |
| Noise | ≤65dB@22°C |
| Operation Temperature | -30°C ~ +50°C |
| Work Humidity | 5%-95% |
| Work Altitude | <2000m |
| Package Dimension | 715×925×440mm |
| External Package | Wood Case |
Frequently Asked Questions
The PowerFlex Series is available in 20kW, 30kW, and 40kW configurations. See our Selection Guide above to determine which model fits your application.
Options include CCS2, CCS1, GBT, and NACS. Please specify your preferred connector type when ordering.
Yes. PowerFlex natively supports OCPP 1.6 JSON with Wi-Fi, Ethernet, and 4G connectivity for seamless backend integration.
PowerFlex supports both floor-standing and wall-mounted installation, offering flexibility for different site layouts and space constraints.
Standalone operation is available. Please confirm with our sales team based on your specific firmware and configuration requirements.
Customization options may include logo, color, connector type, cable length, and payment interface. Please contact our sales team with your specific requirements.
RUNB provides a standard manufacturer‘s warranty covering defects in materials and workmanship. For detailed warranty terms, please refer to the official warranty policy or contact our sales team.
Planning Your Next DC Charging Project?
Share your required power, connector type, installation environment, and estimated quantity. Our team will help you identify the right PowerFlex configuration for your specific needs.
