High-Power DC Charging Built for Commercial Operations
60–240kW | Dual-Gun | 200–1000V | OCPP 1.6 JSON
Designed for public charging networks, fleet depots, and high-utilization charging sites. The HyperCharge Series delivers reliable, high-throughput DC charging with intelligent power distribution, remote monitoring, and flexible deployment options — enabling operators to scale their EV infrastructure with confidence.
Commercial DC Charging Platform for High-Utilization Sites
Available in 60/80kW, 120/160kW, and 180/240kW configurations, the HyperCharge Series is purpose-built for sites that demand high throughput and reliable operation. Dual connectors with intelligent power distribution allow two vehicles to charge simultaneously — with flexible power allocation based on vehicle demand. With a 200–1000V DC output range, it supports broad EV compatibility — from passenger cars to electric buses and trucks.
⚡
60–240kW Total Output🔌
Dual-Gun | CCS2/CCS1/GBT/NACS (Optional)📱
OCPP 1.6 JSON🛡️
IP54 / IK08📺
12.1-inch Touch Display
Why PulseCharge Fits Your Region
📈Higher Site Throughput
Dual-gun charging with intelligent power distribution allows operators to serve more vehicles per charging cabinet, increasing site utilization and revenue potential.
⚡Flexible Power Configuration
Multiple power ratings (60/80/120/160/180/240kW) allow operators to match charger capacity with site demand — from retail parking to highway corridors.
🌐Network-Ready Architecture
Native OCPP 1.6 JSON with Wi-Fi, Ethernet, and 4G enables integration with compatible charging management platforms.
🔧Remote O&M Capability
OTA firmware updates and remote diagnostics reduce unnecessary site visits and minimize operational downtime.
🏗️Deployment Flexibility
Floor-standing design with multiple connector options (CCS2/CCS1/GBT/NACS) adapts to diverse regional standards.
Why RUNB — Beyond the Hardware
| 01 | 📐 | Engineering Flexibility | Configurable connector, cable, and communication options to match project requirements. |
| 02 | 📋 | Project-Based Support | Configuration recommendations based on site power capacity, expected daily sessions, and vehicle types. |
| 03 | 🏭 | OEM / ODM Capability | Custom branding, appearance, and interface options available for distributors and system integrators. |
| 04 | 🤝 | Integration Support | Technical cooperation for OCPP backend integration, CMS integration, and payment system compatibility. |
Find the Right Configuration for Your Site
Select the power rating that matches your site’s traffic, vehicle mix, and power capacity.
| 60–80kW | 120–160kW | 180–240kW |
|---|---|---|
| ⚡ 60–80kW Total Output | ⚡ 120–160kW Total Output | ⚡ 180–240kW Total Output |
| Best for: • Retail parking • Hotels & resorts • Restaurants & shopping malls • Small fleets • Destination charging | Best for: • Urban public charging hubs • Medium-size fleets • Commercial parking facilities • Growing EV traffic locations | Best for: • Highway service areas • Bus depots • Truck charging stations • High-utilization CPO sites |
| 🚗 Ideal for sites with moderate daily turnover and lower power capacity. | 🚗 Balanced performance for growing EV demand and flexible site requirements. | 🚗 Maximizes charging throughput for high-demand locations with sufficient grid capacity. |
Not sure which configuration you need? Tell us your site power capacity, expected daily sessions, and vehicle types.
Integration & Connectivity — Designed for Network Operations
OCPP 1.6 JSON enables integration with compatible charging management platforms. Available backend functions — including remote monitoring, dynamic load management, billing, and OTA updates — depend on the CMS and system configuration.
📶
Wi-Fi / Ethernet / 4G (All Standard)📡
OCPP 1.6 JSON (Native)📱
App / QR Code / RFID Card💳
POS payment is available as an optional software integration and may require local payment-service configuration
Deployment Environment — Rated for Commercial Outdoor Installations
| 🛡️ IP54 | 💪 IK08 | 🌡️ -30°C to +50°C | 💧 5–95% RH | ⚡ 95% Efficiency |
|---|---|---|---|---|
| Enclosure protection for outdoor and semi-outdoor commercial installations | Impact protection for public and high-traffic areas | Rated operating temperature range | Rated humidity range | Maximum efficiency at full load |
Additional Specifications:
🧊
Fan Cooling🔇
≤65dB@22°C🏗️
Installation: Floor Stand⚖️
Weight: 280–360kg (varies by configuration)🛡️
Full Protection: Over current, Residual current, Short circuit, Surge, Over/Under voltage, Over/Under frequency, Over/Under temperature
Applications — Where HyperCharge Fits

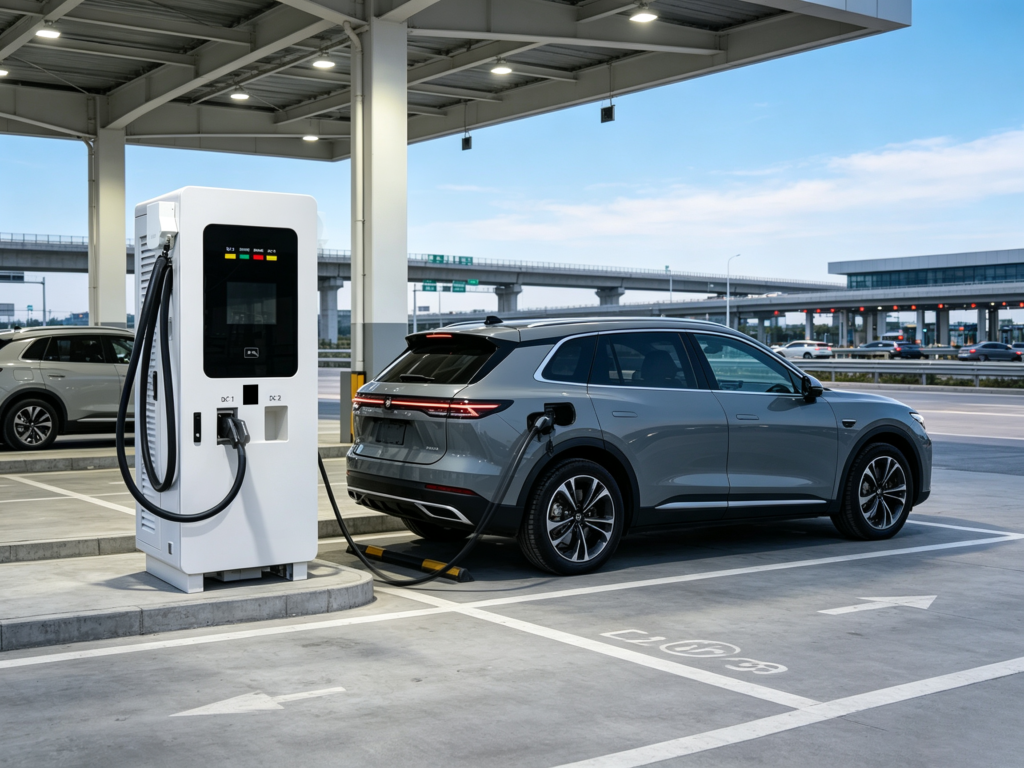

Highway Service Areas
🛣️ High-power charging for travelers between cities with minimal dwell time.

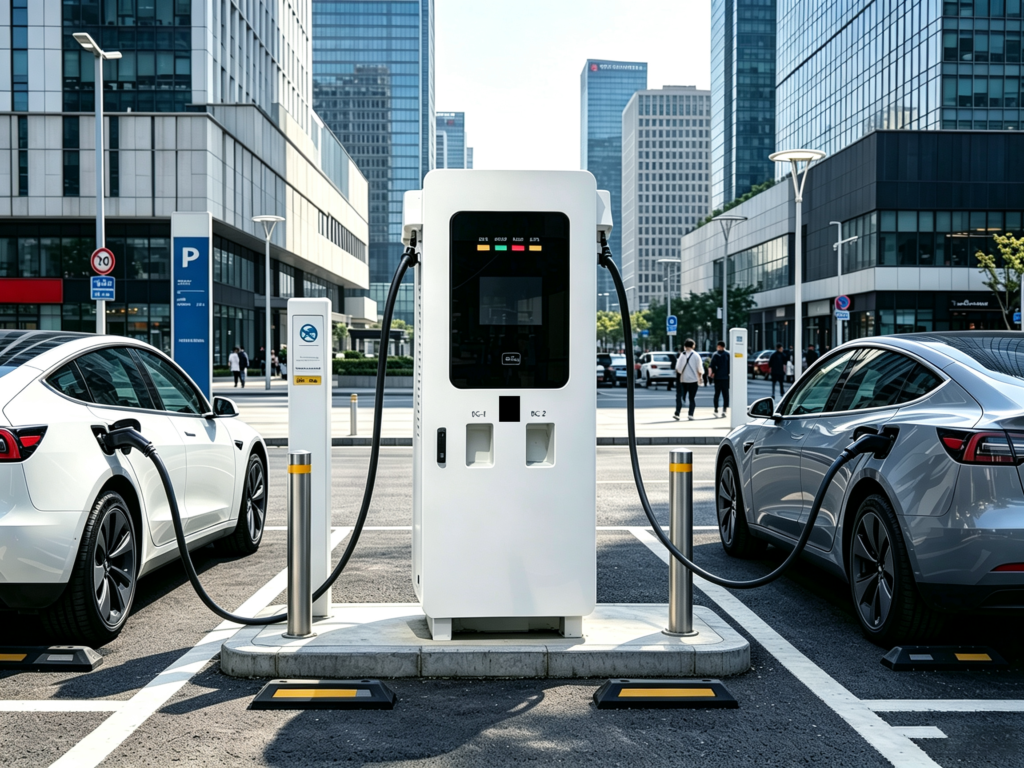

Urban Public Charging Hubs
🏙️ Maximize site throughput in high-traffic urban locations with dual-gun operation.

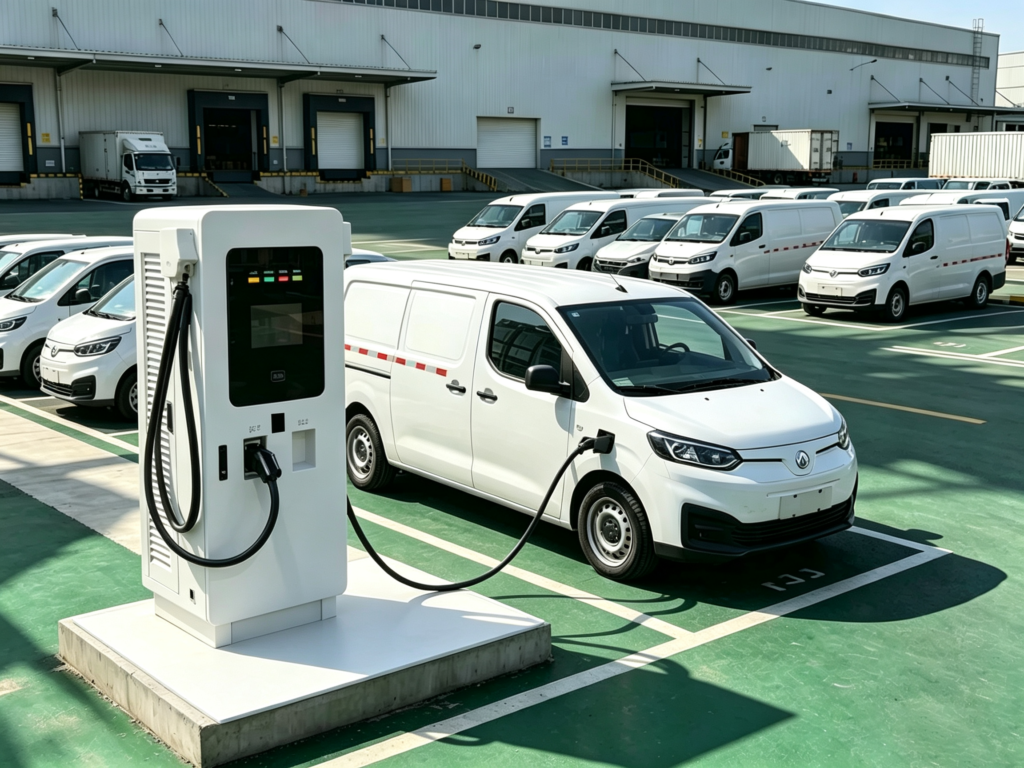

Fleet Depots
🚚 Serve multiple fleet vehicles efficiently with flexible power configuration.

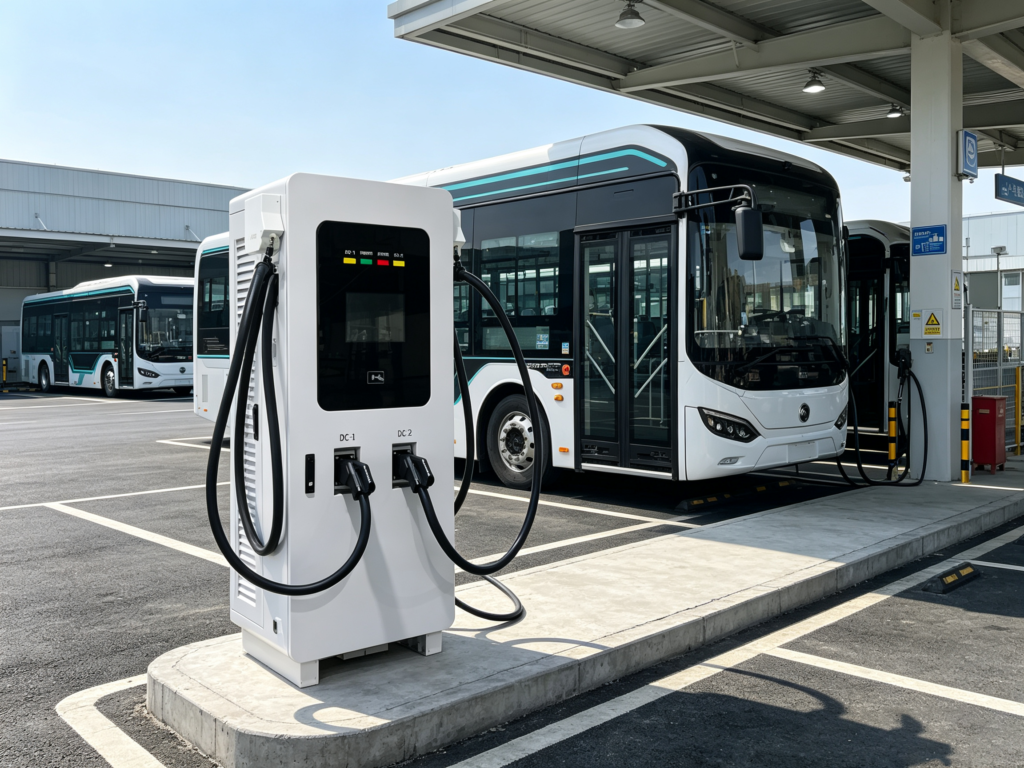

Bus & Truck Terminals
🚌 Support heavy-duty EVs with 200–1000V wide voltage range.
TECHNICAL SPECIFICATIONS
| Parameter | DC60/80KW | DC120/160KW | DC180/240KW |
|---|---|---|---|
| Power Supply | 3P+N+PE | 3P+N+PE | 3P+N+PE |
| Input Voltage | 400V AC ±10% | 400V AC ±10% | 400V AC ±10% |
| Max Input Current | 91A / 122A | 182A / 243A | 273A / 366A |
| Input Frequency | 50/60Hz | 50/60Hz | 50/60Hz |
| Output Voltage | 200-1000V DC | 200-1000V DC | 200-1000V DC |
| Max Current (Optional) | 200A / 250A / 400A | 200A / 250A / 400A | 200A / 250A / 400A |
| Rated Power | 60kW / 80kW | 120kW / 160kW | 180kW / 240kW |
| Efficiency | Max 95% | Max 95% | Max 95% |
| Power Factor | ≥0.99@50%-100% | ≥0.99@50%-100% | ≥0.99@50%-100% |
| THD | ≤5%@100% Load | ≤5%@100% Load | ≤5%@100% Load |
| Ripple Factor | ≤±1% | ≤±1% | ≤±1% |
| Parameter | Specification |
|---|---|
| Connector Options | CCS2*2 / CCS1*2 / GBT2 / NACS2 / CCS2+GBT (All power ratings supported) |
| Cable Length | 5m |
| Enclosure | Galvanized Steel |
| Installation | Floor Stand |
| LED Indicator | Green / Yellow / Red |
| Display | 12.1-inch Touch Screen |
| Start Mode | App / QR / RFID Card / POS (Optional Software Integration) |
| Cable Management | Optional |
| Product Dimension | 700×650×1900mm (W×D×H) |
| Weight | 280–360kg (varies by configuration) |
| Parameter | Specification |
|---|---|
| Ingress Protection | IP54 |
| Impact Protection | IK08 |
| Emergency Stop | Yes |
| Electrical Protection | Over current, Residual current, Short circuit, Surge, Over/Under voltage, Over/Under frequency, Over/Under temperature |
| Cooling Method | Fan Cooling |
| Noise | ≤65dB@22°C |
| Operation Temperature | -30°C ~ +50°C |
| Work Humidity | 5%-95% |
| Work Altitude | <2000m |
| Standalone Operation | Supported |
| Package Dimension | 1080×830×2150mm |
| External Package | Wood Case |
Certification & Market Compliance
Current Certifications:
CE
Available Technical Documentation:
Test Reports
Declaration of Conformity
Datasheet
Installation Manual
User Manual
Market-Specific Support:
We can provide technical documentation and cooperate with local partners to support market-specific certification and approval requirements.
Frequently Asked Questions
Intelligent power distribution dynamically allocates available power between the two connectors based on vehicle demand and BMS instructions. The charger can allocate up to 70% of total power to one vehicle and 30% to the other, depending on battery requirements. When only one vehicle is connected, it receives the full output power. This flexible allocation is managed at the module level and adjusted in real time.
The HyperCharge Series is available in 60/80kW, 120/160kW, and 180/240kW configurations. See our Selection Guide above to determine which model fits your application.
Options include CCS2*2, CCS1*2, GBT*2, NACS*2, and CCS2+GBT mixed configurations. All connector options are supported across all power ratings. Please specify your preferred connector type when ordering.
Yes. HyperCharge natively supports OCPP 1.6 JSON with Wi-Fi, Ethernet, and 4G connectivity. Integration depends on the CMS and system configuration — our team can assist with technical cooperation.
Yes. Standalone operation is supported.
| Standard Options | Project Customization |
|---|---|
| Connector Type | Logo |
| Cable Length | Color |
| Communication (Wi-Fi/Ethernet/4G) | Payment Interface (Software Integration) |
| Cable Management | Language |
| — | Backend Integration |
2-year standard warranty covering defects in materials and workmanship.
21–45 days, depending on order quantity and stock availability. Please contact our sales team for current lead time estimates.
Ready to Deploy High-Power DC Charging?
Whether you’re planning a new site or upgrading existing infrastructure, our team can help you find the right configuration for your project.
